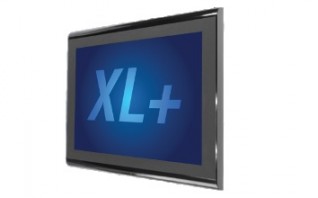

XL+ SERIES

Laminated 15" XGA Full Colour Resistive Touch Display. Multi Core ARM CPU. Two 10/100/1000 (Auto-MDIX) Ethernet LAN ports. Built-In Digital and Analogue I/O with quad 500kHz high-speed counters. USB Programming. High capacity microSD slot (up to 128Gb max). Three (3) RS232/RS485 serial ports, Three (3) USB A ports and one (1) USB mini-B port, two (2) CAN Ports. Mic In and Audio Out. Wide-range DC power (10 – 30VDC). Support for full-screen video streaming and Playback, mini display port output support (1080p resolution). Polycarbonate Coating for improved durability.

Download datasheet

Ask your quote

WIDE ASPECT COLOR TOUCHSCREEN
The X5 really packs a big picture into an overall small package. With just a 4.6” x 3.5” cutout, this 4.3” wide aspect screen is very friendly, intuitive, and clear. By
incorporating our hidden soft key technology, you can use the entire screen to illustrate your specific applications.

STREAMLINED I/O
In an effort to make implementing Horner OCS controllers as seamless and user-friendly as possible, we have selected a streamlined set of on-board I/O.
4 digital inputs, 4 digital outputs, and 4 analog inputs make automating your applications, and your organization, as simple as the push of a (virtual) button.

PERFORMANCE
When it comes to speed, resolution, and technical capabilities, the X5 is leading the way. We have developed an entirely new design techniques, yielding fast
processor speeds, a suite of capabilities similar to our more established XL line of products, and unprecedented acceptance across an array of commercial and
industrial applications. In the market of fixed I/O, web-compatible controllers, the X5 is unmatched.

COMPETITIVE ADVANTAGE
The simplistic overall design of the X5 has empowered our team of driven engineers to develop a product at the forefront of leading technology, creating
an opportunity to take advantage of commercial economies of scale. The state-of-the-art design, coupled with economic efficiencies position the X5 as more
than a technological milestone – it’s a competitive industrial leader.

available models

Model No.	Description	Quantity
HEXT751C100	XL+ Series OCS without IO card. CsCAN Network Port
HEXT751C112	XL+ Series OCS with DC/Relay I/O. Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting. Six (6) Relay Outputs - up to 5A continuous current. Four (4) 10-bit Analog Inputs selectable between 0-10V and 4-20mA. CsCAN Network Port
HEXT751C113	XL10 Series OCS with DC/DC I/O. Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting. Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs. Two (2) 10-bit Analog Inputs selectable between 0-10V and 4-20mA. CsCAN Network Port
HEXT751C114	XL+ Series OCS with High-density DC/DC I/O. Twenty-four (24) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting. Sixteen (16) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs. Two (2) 10-bit Analog Inputs selectable between 0-10V and 4-20mA. CsCAN Network Port
HEXT751C115	XL+ Series OCS with DC/DC and Universal Analog I/O. Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting. Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs. Two (2) 14-bit Universal Analog Inputs selectable between Thermocouple, RTD, 0-100mV, 0-10V and 4-20mA. Two (2) 12-bit Analog Outputs selectable between 0-10V and 4-20mA. CsCAN Network Port
HEXT751C116	XL+ Series OCS with 12DC In (4HSC) /12DC Out (2 PWM) , AIn 6(17- bit) T/C RTD mV mA V , Aout 4(12-bit) 6 universal analogue inputs, 4 analogue outputs, 12 digital inputs, and 12 digital outputs. Software configurable, the analogue inputs support voltage (0-10, 0-60mV), current (0-20, 4-20mA), thermocouples and RTD (PT100, PT1000).
