XLE SERIES

All XLe units feature a built-in logic engine, operator interface, networking and I/O.  Logic engine features 256MB of application memory with a 1.2mS/K logic scan.  Operator Interface features include a 128x64 graphical display, and 20-key keypad with function key and numeric entry capability.  Two (2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable  protocols.  Networking Options feature a integrated CsCAN port.  Mini USB B 2.0, Programming & Data access.  All units feature a Removable Mass Storage device, supporting up to 32GB. Optional Keypads available see Notes

XLE Series

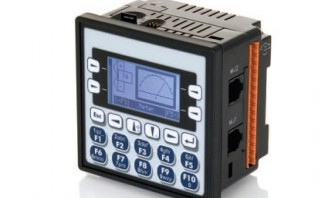

The XLe extends the OCS product range with a compact (96x96x57) and cost effective all-in-one controller.  With its 128x64 LC-Display it has full monochrome graphics capabilities and is equipped with built-in I/O. This I/O capability coupled with the dual protocol capabilities, optional internal telecommunication modules, makes the XLe a perfect solution for remote machine control and distributed control systems.

The OCS with its full IEC61131-3 integrated development environment for logic, HMI design, networking and I/O configuration is a very capable PLC with full graphics capability. The operator interface used in the XLe series is a high visibility graphics monchrome display with blue LED backlight offering excellent readability to the user in the most difficult conditions.

I/O & Communications options for any application:

On top of the built-in fixed I/O the XLe can be extended with any of our SmartStix™ and SmartMod™ remote I/O modules. Two serial ports support simultaneous protocols giving the abillity to connect to virtually any serial device. Add a telecommunications module to the XLe and access your machinery or plant anywhere in the world.

All XLe units feature a built-in logic engine, operator interface, networking and I/O.  Logic engine features 256MB of application memory with a 1.2mS/K logic scan.  Operator Interface features include a 128x64 graphical display, and 20-key keypad with function key and numeric entry capability.  Two (2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable  protocols.  Networking Options feature a integrated CsCAN port.  Mini USB B 2.0, Programming & Data access.  All units feature a Removable Mass Storage device, supporting up to 32GB. Optional Keypads available see Notes

available models

Model No. Description Quantity
HEXE220C000-01

XLe Series OCS without IO card.
HEXE220C012-01

XLe Series OCS with DC/Relay I/O.  Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Six (6) Relay Outputs - up to 5A continuous current.  Four (4) 10-bit Analog Inputs selectable between 0-10V and 4-20mA.
HEXE2200C013-01

XLe Series OCS with DC/DC I/O.  Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs.  Two (2) 10-bit Analog Inputs selectable between 0-10V and 4-20mA.
HEXE2200C014-01

XLe Series OCS with DC/DC and Universal Analog I/O.  Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs.  Two (2) 14-bit Universal Analog Inputs selectable between Thermocouple, RTD, 0-100mV, 0-10V and 4-20mA.  Two (2) 12-bit Analog Outputs selectable between 0-10V and 4-20mA.
HEXE2200C015-01

XLe Series OCS with DC/DC and Universal Analog I/O.  Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs.  Two (2) 14-bit Universal Analog Inputs selectable between Thermocouple, RTD, 0-100mV, 0-10V and 4-20mA.  Two (2) 12-bit Analog Outputs selectable between 0-10V and 4-20mA.
HEXE2200C016-01

XLe Series OCS with 12DC In (4HSC) /12DC Out (2 PWM) , AIn 6(17- bit)  T/C RTD mV mA V , Aout 4(12-bit) 6 universal analogue inputs, 4 analogue outputs, 12 digital inputs, and 12 digital outputs. Software configurable, the analogue inputs support voltage (0-10, 0-60mV), current (0-20, 4-20mA), thermocouples and RTD (PT100, PT1000).
HEXE220C100-01

XLe Series OCS without IO card. CsCAN Network Port
HEXE220C112-01

XLe Series OCS with DC/Relay I/O.  Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Six (6) Relay Outputs - up to 5A continuous current.  Four (4) 10-bit Analog Inputs selectable between 0-10V and 4-20mA.  CsCAN Network Port
HEXE220C113-01

XLe Series OCS with DC/DC I/O.  Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs.  Two (2) 10-bit Analog Inputs selectable between 0-10V and 4-20mA. CsCAN Network Port
HEXE220C114-01

XLe Series OCS with High-density DC/DC I/O.  Twenty-four (24) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Sixteen (16) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs.  Two (2) 10-bit Analog Inputs selectable between 0-10V and 4-20mA. CsCAN Network Port
HEXE220C115-01

XLe Series OCS with DC/DC and Universal Analog I/O.  Twelve (12) digital Inputs compatible with 12V/24Vdc - four inputs can be used for 10kHz High Speed Counting.  Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs.  Two (2) 14-bit Universal Analog Inputs selectable between Thermocouple, RTD, 0-100mV, 0-10V and 4-20mA.  Two (2) 12-bit Analog Outputs selectable between 0-10V and 4-20mA. CsCAN Network Port
HEXE220C116-01

XLe Series OCS with 12DC In (4HSC) /12DC Out (2 PWM) , AIn 6(17- bit)  T/C RTD mV mA V , Aout 4(12-bit) 6 universal analogue inputs, 4 analogue outputs, 12 digital inputs, and 12 digital outputs. Software configurable, the analogue inputs support voltage (0-10, 0-60mV), current (0-20, 4-20mA), thermocouples and RTD (PT100, PT1000).
