X5 SERIES

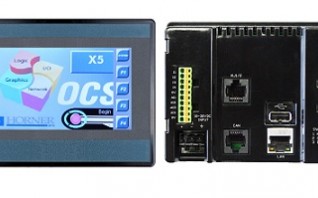

X5 Series OCS with virtual function keys that slide in from the right on command.  4 DC inputs (12-24Vdc), 4 x 12 bit analog inputs (0-20mA, 4-20mA, 0-10Vdc) and 4 DC outputs (0.5A @ 24Vdc).  RS232/RS485 serial port.  USB mini-B port and USB A port.  Wide-range DC power.  High capacity microSD slot.  CAN port via RJ45.  Ethernet LAN port

X5 Series

WIDE ASPECT COLOR TOUCHSCREEN
The X5 really packs a big picture into an overall small package. With just a 4.6” x 3.5” cutout, this 4.3” wide aspect screen is very friendly, intuitive, and clear. By
incorporating our hidden soft key technology, you can use the entire screen to illustrate your specific applications.

STREAMLINED I/O
In an effort to make implementing Horner OCS controllers as seamless and user-friendly as possible, we have selected a streamlined set of on-board I/O.
4 digital inputs, 4 digital outputs, and 4 analog inputs make automating your applications, and your organization, as simple as the push of a (virtual) button.

PERFORMANCE
When it comes to speed, resolution, and technical capabilities, the X5 is leading the way. We have developed an entirely new design techniques, yielding fast
processor speeds, a suite of capabilities similar to our more established XL line of products, and unprecedented acceptance across an array of commercial and
industrial applications. In the market of fixed I/O, web-compatible controllers, the X5 is unmatched.

COMPETITIVE ADVANTAGE
The simplistic overall design of the X5 has empowered our team of driven engineers to develop a product at the forefront of leading technology, creating
an opportunity to take advantage of commercial economies of scale. The state-of-the-art design, coupled with economic efficiencies position the X5 as more
than a technological milestone – it’s a competitive industrial leader.

available models

Model No. Description Quantity
HE-X5

X5 Series OCS with virtual function keys that slide in from the right on command.  4 DC inputs (12-24Vdc), 4 x 12 bit analog inputs (0-20mA, 4-20mA, 0-10Vdc) and 4 DC outputs (0.5A @ 24Vdc).  RS232/RS485 serial port.  USB mini-B port and USB A port.  Wide-range DC power.  High capacity microSD slot.  CAN port via RJ45.  Ethernet LAN port
