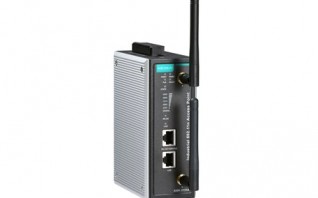

AWK-3131A SERIES

802.11a/b/g/n access point, EU band, -25 to 60°C operating temperature
awk-3131a-series
IEEE 802.11a/b/g/n AP/bridge/client support
Easy setup and deployment with AeroMag
Client-based millisecond-level Turbo Roaming
Complete redundancy with AeroLink Protection
Integrated antenna and power isolation
-40 to 75°C operating temperature range (-T models)
5 GHz DFS channel support

WLAN Interface

  • WLAN Standards: 802.11a/b/g/n 802.11i Wireless Security
  • Modulation Type: DSSS OFDM MIMO-OFDM
  • Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Wireless Security: WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
  • Transmission Rate: 802.11b: 1 to 11 Mbps 802.11a/g: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps
  • Transmitter Power for 802.11a: 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11b: 26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g: 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 19±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz): 23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power for 802.11n (5 GHz): 23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power: –
  • Transmitter Power: US
  • Transmitter Power: EU
  • Transmitter Power: JP
  • Transmitter Power: 2.4 GHz
  • Transmitter Power: 26 dBm
  • Transmitter Power: 18 dBm
  • Transmitter Power: 18 dBm
  • Transmitter Power: 5 GHz (UNII-1)
  • Transmitter Power: 23 dBm
  • Transmitter Power: 21 dBm
  • Transmitter Power: 21 dBm
  • Transmitter Power: 5 GHz (UNII-2)
  • Transmitter Power: 23 dBm
  • Transmitter Power: 21 dBm
  • Transmitter Power: 21 dBm
  • Transmitter Power: 5 GHz (UNII-2e)
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 5 GHz (UNII-3)
  • Transmitter Power: 23 dBm
  • Transmitter Power: –
  • Transmitter Power: –
  • Transmitter Power: Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.
  • Receiver Sensitivity for 802.11a: -90 dBm @ 6 Mbps -88 dBm @ 9 Mbps -88 dBm @ 12 Mbps -85 dBm @ 18 Mbps -81 dBm @ 24 Mbps -78 dBm @ 36 Mbps -74 dBm @ 48 Mbps -72 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11b: -93 dBm @ 1 Mbps -93 dBm @ 2 Mbps -93 dBm @ 5.5 Mbps -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g: -88 dBm @ 6 Mbps -86 dBm @ 9 Mbps -85 dBm @ 12 Mbps -85 dBm @ 18 Mbps -85 dBm @ 24 Mbps -82 dBm @ 36 Mbps -78 dBm @ 48 Mbps -74 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz): -70 dBm @ MCS7 20 MHz -69 dBm @ MCS15 20 MHz -67 dBm @ MCS7 40 MHz -67 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11n (5 GHz): -69 dBm @ MCS7 20 MHz -71 dBm @ MCS15 20 MHz -63 dBm @ MCS7 40 MHz -68 dBm @ MCS15 40 MHz
  • WLAN Operation Mode: Access point, Client, Client-Router, Master, Slave, Sniffer
  • Antenna: External, 2/2 dBi, Omni-directional
  • Antenna Connectors: 2 RP-SMA female
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -88 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -72 @ 54 Mbps Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -69 dBm @ MCS7 20 MHz Typ. -71 dBm @ MCS15 20 MHz Typ. -63 dBm @ MCS7 40 MHz Typ. -68 dBm @ MCS15 40 MHz Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -93 dBm @ 1 Mbps Typ. -93 dBm @ 2 Mbps Typ. -93 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -88 dBm @ 6 Mbps Typ. -86 dBm @ 9 Mbps Typ. -85 dBm @ 12 Mbps Typ. -85 dBm @ 18 Mbps Typ. -85 dBm @ 24 Mbps Typ. -82 dBm @ 36 Mbps Typ. -78 dBm @ 48 Mbps Typ. -74 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -70 dBm @ MCS7 20 MHz Typ. -69 dBm @ MCS15 20 MHz Typ. -67 dBm @ MCS7 40 MHz Typ. -67 dBm @ MCS15 40 MHz

Ethernet Interface

  • PoE Ports (10/100/1000BaseT(X), RJ45 connector): 1
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3at for PoE IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol

Ethernet Software Features

  • Management: DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
  • Redundancy Protocols: RSTP, STP
  • Security: HTTPS/SSL, RADIUS, SSH
  • Time Management: SNTP Client
  • Unicast Routing: Static Route
  • Routing: Port forwarding, Static Route, NAT

Firewall

  • Filter: ICMP, MAC address, IP protocol, Port-based

Serial Interface

  • Console Port: RS-232, 8-pin RJ45

LED Interface

  • LED Indicators: PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, WLAN, LAN

Input/Output Interface

  • Digital Inputs: 2 Max. input current: 8 mA +13 to +30 V for state 1 +3 to -30 V for state 0
  • Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons: Reset button

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 52.7 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)
  • Weight: 860 g (1.9 lb)
  • Installation: DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

  • Input Current: 0.6 A @ 12 VDC, 0.15 A @ 48 VDC
  • Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
  • Power Connector: 1 removable 10-contact terminal block(s)
  • Power Consumption: 7.2 W (max.)
  • Reverse Polarity Protection: Supported

Environmental Limits

  • Operating Temperature: -25 to 60°C (-13 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
  • Hazardous Locations: ATEX, Class I Division 2, IECEx
  • Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, ANATEL, MIC, NCC, RCM, SRRC, WPC, KC
  • Safety: EN 60950-1, UL 60950-1
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 570,854 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
AWK-3131A-EU 802.11a/b/g/n access point, EU band, -25 to 60°C operating temperature
AWK-3131A-EU-T 802.11a/b/g/n access point, EU band, -40 to 75°C operating temperature
AWK-3131A-JP 802.11a/b/g/n access point, JP band, -25 to 60°C operating temperature
AWK-3131A-JP-T 802.11a/b/g/n access point, JP band, -40 to 75°C operating temperature
AWK-3131A-US 802.11a/b/g/n access point, US band, -25 to 60°C operating temperature
AWK-3131A-US-T 802.11a/b/g/n access point, US band, -40 to 75°C operating temperature
