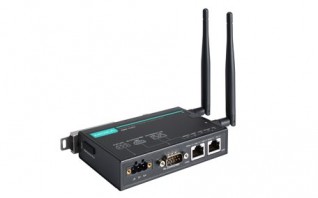

AWK-1137C SERIES

802.11a/b/g/n wireless client, EU band, 0 to 60°C operating temperature
awk-1137c-series
IEEE 802.11a/b/g/n compliant client
Comprehensive interfaces with one serial port and two Ethernet LAN ports
Client-based millisecond-level Turbo Roaming
2x2 MIMO future-proof technology
Integrated robust antenna and power isolation
Anti-vibration design
Compact size for your industrial applications
Easy setup and deployment with AeroMag

WLAN Interface

  • WLAN Standards: 802.11a/b/g/n 802.11i Wireless Security
  • Modulation Type: DSSS OFDM MIMO-OFDM
  • Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Wireless Security: WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
  • Transmission Rate: 802.11b: 1 to 11 Mbps 802.11a/g: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps
  • Transmitter Power for 802.11a: 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11b: 26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g: 23±1.5 dBm @ 6 to 24 Mbps 22±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 19±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz): 23±1.5 dBm @ MCS0/8 20 MHz 17±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power for 802.11n (5 GHz): 23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 18±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power:
  • Transmitter Power: US
  • Transmitter Power: EU
  • Transmitter Power: JP
  • Transmitter Power: 2.4 GHz
  • Transmitter Power: 26 dBm
  • Transmitter Power: 18 dBm
  • Transmitter Power: 18 dBm
  • Transmitter Power: 5 GHz (UNII-1)
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 5 GHz (UNII-2)
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 5 GHz (UNII-2e)
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 23 dBm
  • Transmitter Power: 5 GHz (UNII-3)
  • Transmitter Power: 23 dBm
  • Transmitter Power:
  • Transmitter Power:
  • Transmitter Power: Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.
  • Receiver Sensitivity for 802.11a: -90 dBm @ 6 Mbps -88 dBm @ 9 Mbps -87 dBm @ 12 Mbps -85 dBm @ 18 Mbps -81 dBm @ 24 Mbps -78 dBm @ 36 Mbps -74 dBm @ 48 Mbps -73 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11b: -89 dBm @ 1 Mbps -89 dBm @ 2 Mbps -89 dBm @ 5.5 Mbps -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g: -88 dBm @ 6 Mbps -88 dBm @ 9 Mbps -88 dBm @ 12 Mbps -87 dBm @ 18 Mbps -84 dBm @ 24 Mbps -81 dBm @ 36 Mbps -77 dBm @ 48 Mbps -75 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz): -70 dBm @ MCS7 20 MHz -70 dBm @ MCS15 20 MHz -64 dBm @ MCS7 40 MHz -65 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11n (5 GHz): -69 dBm @ MCS7 20 MHz -70 dBm @ MCS15 20 MHz -64 dBm @ MCS7 40 MHz -66 dBm @ MCS15 40 MHz
  • WLAN Operation Mode: Client, Client-Router, Slave, Sniffer
  • Antenna: External, 2/2 dBi, Omni-directional
  • Antenna Connectors: 2 RP-SMA female
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -87 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -73 @ 54 Mbps Note
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -69 dBm @ MCS7 20 MHz Typ. -70 dBm @ MCS15 20 MHz Typ. -64 dBm @ MCS7 40 MHz Typ. -66 dBm @ MCS15 40 MHz Note
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -89 dBm @ 1 Mbps Typ. -89 dBm @ 2 Mbps Typ. -89 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -88 dBm @ 6 Mbps Typ. -88 dBm @ 9 Mbps Typ. -88 dBm @ 12 Mbps Typ. -87 dBm @ 18 Mbps Typ. -84 dBm @ 24 Mbps Typ. -81 dBm @ 36 Mbps Typ. -77 dBm @ 48 Mbps Typ. -75 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -70 dBm @ MCS7 20 MHz Typ. -70 dBm @ MCS15 20 MHz Typ. -64 dBm @ MCS7 40 MHz Typ. -65 dBm @ MCS15 40 MHz

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.1Q for VLAN Tagging

Ethernet Software Features

  • Management: DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
  • Security: HTTPS/SSL, RADIUS, SSH
  • Time Management: NTP Client, SNTP Client
  • Routing: Port forwarding, Static Route, NAT

Firewall

  • Filter: ICMP, MAC address, IP protocol, Port-based

Serial Interface

  • Connector: DB9 male
  • Serial Standards: RS-232, RS-422/485, RS-232/422/485
  • Operation Modes: Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: None, RTS/CTS, XON/XOFF
  • Baudrate: 75 bps to 921.6 kbps
  • Serial Data Log: 256 KB

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

LED Interface

  • LED Indicators: SYS, LAN1, LAN2, WLAN, Serial

Input/Output Interface

  • Buttons: Reset button

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)
  • Weight: 470 g (1.03 lb)
  • Installation: DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

  • Input Voltage: 9 to 30 VDC
  • Power Connector: 1 removable 3-contact terminal block(s)
  • Power Consumption: 11.7 W (max.)
  • Reverse Polarity Protection: Supported

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 61000-6-2/-6-4, EN 55032/24
  • EMI: CISPR 22, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-1137C, ANATEL, MIC, NCC, SRRC, WPC, KC, RCM
  • Road Vehicles: E mark E1
  • Safety: EN 60950-1, UL 60950-1
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 1,125,942 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
AWK-1137C-EU 802.11a/b/g/n wireless client, EU band, 0 to 60°C operating temperature
AWK-1137C-EU-T 802.11a/b/g/n wireless client, EU band, -40 to 75°C operating temperature
AWK-1137C-JP 802.11a/b/g/n wireless client, JP band, 0 to 60°C operating temperature
AWK-1137C-JP-T 802.11a/b/g/n wireless client, JP band, -40 to 75°C operating temperature
AWK-1137C-US 802.11a/b/g/n wireless client, US band, 0 to 60°C operating temperature
AWK-1137C-US-T 802.11a/b/g/n wireless client, US band, -40 to 75°C operating temperature
