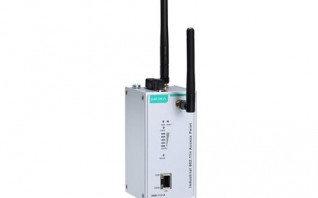

AWK-1131A SERIES
802.11a/b/g/n access point, EU band, 0 to 60°C operating temperature
IEEE 802.11a/b/g/n AP/client support
Client-based millisecond-level Turbo Roaming
Integrated antenna and power isolation
5 GHz DFS channel support
Client-based millisecond-level Turbo Roaming
Integrated antenna and power isolation
5 GHz DFS channel support
WLAN Interface
- WLAN Standards: 802.11a/b/g/n 802.11i Wireless Security
- Modulation Type: DSSS OFDM MIMO-OFDM
- Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
- Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Wireless Security: WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
- Transmission Rate: 802.11b: 1 to 11 Mbps 802.11a/g: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps
- Transmitter Power for 802.11a: 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11b: 26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
- Transmitter Power for 802.11g: 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 19±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11n (2.4 GHz): 23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
- Transmitter Power for 802.11n (5 GHz): 23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
- Transmitter Power: Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.
- Transmitter Power: US
- Transmitter Power: EU
- Transmitter Power: JP
- Transmitter Power: 2.4 GHz
- Transmitter Power: 26 dBm
- Transmitter Power: 18 dBm
- Transmitter Power: 18 dBm
- Transmitter Power: 5 GHz (UNII-1)
- Transmitter Power: 23 dBm
- Transmitter Power: 21 dBm
- Transmitter Power: 21 dBm
- Transmitter Power: 5 GHz (UNII-2)
- Transmitter Power: 23 dBm
- Transmitter Power: 21 dBm
- Transmitter Power: 21 dBm
- Transmitter Power: 5 GHz (UNII-2e)
- Transmitter Power: 23 dBm
- Transmitter Power: 23 dBm
- Transmitter Power: 23 dBm
- Transmitter Power: 5 GHz (UNII-3)
- Transmitter Power: 23 dBm
- Transmitter Power: –
- Transmitter Power: –
- Transmitter Power: Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.
- Receiver Sensitivity for 802.11a: -90 dBm @ 6 Mbps -88 dBm @ 9 Mbps -88 dBm @ 12 Mbps -85 dBm @ 18 Mbps -81 dBm @ 24 Mbps -78 dBm @ 36 Mbps -74 dBm @ 48 Mbps -72 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11b: -93 dBm @ 1 Mbps -93 dBm @ 2 Mbps -93 dBm @ 5.5 Mbps -88 dBm @ 11 Mbps
- Receiver Sensitivity for 802.11g: -88 dBm @ 6 Mbps -86 dBm @ 9 Mbps -85 dBm @ 12 Mbps -85 dBm @ 18 Mbps -85 dBm @ 24 Mbps -82 dBm @ 36 Mbps -78 dBm @ 48 Mbps -74 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (2.4 GHz): -70 dBm @ MCS7 20 MHz -69 dBm @ MCS15 20 MHz -67 dBm @ MCS7 40 MHz -67 dBm @ MCS15 40 MHz
- Receiver Sensitivity for 802.11n (5 GHz): -69 dBm @ MCS7 20 MHz -71 dBm @ MCS15 20 MHz -63 dBm @ MCS7 40 MHz -68 dBm @ MCS15 40 MHz
- WLAN Operation Mode: Access point, Client, Sniffer
- Antenna: External, 2/2 dBi, Omni-directional
- Antenna Connectors: 2 RP-SMA female
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -88 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -72 @ 54 Mbps Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
- Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -69 dBm @ MCS7 20 MHz Typ. -71 dBm @ MCS15 20 MHz Typ. -63 dBm @ MCS7 40 MHz Typ. -68 dBm @ MCS15 40 MHz Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
- Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
- Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -93 dBm @ 1 Mbps Typ. -93 dBm @ 2 Mbps Typ. -93 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps
- Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -88 dBm @ 6 Mbps Typ. -86 dBm @ 9 Mbps Typ. -85 dBm @ 12 Mbps Typ. -85 dBm @ 18 Mbps Typ. -85 dBm @ 24 Mbps Typ. -82 dBm @ 36 Mbps Typ. -78 dBm @ 48 Mbps Typ. -74 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -70 dBm @ MCS7 20 MHz Typ. -69 dBm @ MCS15 20 MHz Typ. -67 dBm @ MCS7 40 MHz Typ. -67 dBm @ MCS15 40 MHz
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 1
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.1X for authentication
Ethernet Software Features
- Management: DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
- Security: HTTPS/SSL, RADIUS, SSH
- Time Management: SNTP Client
Firewall
- Filter: ICMP, MAC address, IP protocol, Port-based
Serial Interface
- Console Port: RS-232, 8-pin RJ45
LED Interface
- LED Indicators: PWR, FAULT, STATE, SIGNAL, WLAN, LAN
Input/Output Interface
- Buttons: Reset button
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)
- Weight: 307 g (0.68 lb)
- Installation: DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
- Input Current: 0.56 A @ 12 VDC, 0.14 A @ 48 VDC
- Input Voltage: 12 to 48 VDC
- Power Connector: 1 removable 4-contact terminal block(s)
- Power Consumption: 6.96 W (max.)
- Reverse Polarity Protection: Supported
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC, ANATEL
- Safety: EN 60950-1, UL 60950-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 749,476 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
