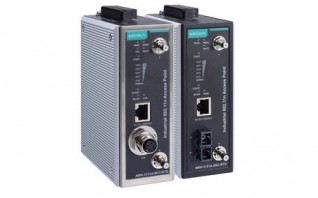

AWK-3131A-RTG SERIES

802.11n railway onboard indoor single radio access point/client, M12, EU band, IP30, -40 to 75°C operating temperature, conformal coating
awk-3131a-rtg-series
IEEE 802.11a/b/g/n compliant
M12 anti-vibration connectors
SC optical fiber connection
QoS (WMM) and VLAN for efficient network traffic
Controller-based Turbo Roaming (less than 50 ms) The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Wide-temperature models available for -40 to 75°C environments

WLAN Interface

  • WLAN Standards: 802.11a/b/g/n 802.11i Wireless Security
  • Modulation Type: DSSS OFDM 802.11b: CCK @ 11/5.5 Mbps 802.11b: DQPSK @ 2 Mbps 802.11b: DBPSK @ 1 Mbps 802.11a/g: 64QAM @ 54/48 Mbps 802.11a/g: 16QAM @ 36/24 Mbps 802.11a/g: QPSK @ 18/12 Mbps 802.11a/g: BPSK @ 9/6 Mbps 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
  • Frequency Band for US (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
  • Frequency Band for US (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for US (20 MHz operating channels): 5.500 to 5.700 GHz (8 channels) excluding 5.600 to 5.640 GHz
  • Frequency Band for US (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for US (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
  • Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for JP (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Wireless Security: SSID broadcast enable/disable WEP encryption (64-bit and 128-bit) WPA/WPA2-Personal WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
  • Transmission Rate: 802.11b: 1 to 11 Mbps 802.11a/g: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps
  • Transmitter Power for 802.11a: 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11b: 26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g: 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 19±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz): 23±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS1 20 MHz 21±1.5 dBm @ MCS2 20 MHz 21±1.5 dBm @ MCS3 20 MHz 20±1.5 dBm @ MCS4 20 MHz 19±1.5 dBm @ MCS5 20 MHz 18±1.5 dBm @ MCS6 20 MHz 18±1.5 dBm @ MCS7 20 MHz 23±1.5 dBm @ MCS8 20 MHz 21±1.5 dBm @ MCS9 20 MHz 21±1.5 dBm @ MCS10 20 MHz 21±1.5 dBm @ MCS11 20 MHz 20±1.5 dBm @ MCS12 20 MHz 19±1.5 dBm @ MCS13 20 MHz 18±1.5 dBm @ MCS14 20 MHz 18±1.5 dBm @ MCS15 20 MHz 23±1.5 dBm @ MCS0 40 MHz 20±1.5 dBm @ MCS1 40 MHz 20±1.5 dBm @ MCS2 40 MHz 20±1.5 dBm @ MCS3 40 MHz 19±1.5 dBm @ MCS4 40 MHz 19±1.5 dBm @ MCS5 40 MHz 18±1.5 dBm @ MCS6 40 MHz 17±1.5 dBm @ MCS7 40 MHz 23±1.5 dBm @ MCS8 40 MHz 20±1.5 dBm @ MCS9 40 MHz 20±1.5 dBm @ MCS10 40 MHz 20±1.5 dBm @ MCS11 40 MHz 20±1.5 dBm @ MCS12 40 MHz 19±1.5 dBm @ MCS13 40 MHz 18±1.5 dBm @ MCS14 40 MHz 17±1.5 dBm @ MCS15 40 MHz
  • Transmitter Power for 802.11n (5 GHz): 23±1.5 dBm @ MCS0 20 MHz 20±1.5 dBm @ MCS1 20 MHz 20±1.5 dBm @ MCS2 20 MHz 20±1.5 dBm @ MCS3 20 MHz 19±1.5 dBm @ MCS4 20 MHz 18±1.5 dBm @ MCS5 20 MHz 18±1.5 dBm @ MCS6 20 MHz 18±1.5 dBm @ MCS7 20 MHz 23±1.5 dBm @ MCS8 20 MHz 20±1.5 dBm @ MCS9 20 MHz 20±1.5 dBm @ MCS10 20 MHz 20±1.5 dBm @ MCS11 20 MHz 19±1.5 dBm @ MCS12 20 MHz 19±1.5 dBm @ MCS13 20 MHz 18±1.5 dBm @ MCS14 20 MHz 18±1.5 dBm @ MCS15 20 MHz 23±1.5 dBm @ MCS0 40 MHz 20±1.5 dBm @ MCS1 40 MHz 20±1.5 dBm @ MCS2 40 MHz 20±1.5 dBm @ MCS3 40 MHz 19±1.5 dBm @ MCS4 40 MHz 18±1.5 dBm @ MCS5 40 MHz 18±1.5 dBm @ MCS6 40 MHz 18±1.5 dBm @ MCS7 40 MHz 23±1.5 dBm @ MCS8 40 MHz 20±1.5 dBm @ MCS9 40 MHz 20±1.5 dBm @ MCS10 40 MHz 20±1.5 dBm @ MCS11 40 MHz 19±1.5 dBm @ MCS12 40 MHz 19±1.5 dBm @ MCS13 40 MHz 18±1.5 dBm @ MCS14 40 MHz 18±1.5 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11a: -90 dBm @ 6 Mbps -88 dBm @ 9 Mbps -88 dBm @ 12 Mbps -85 dBm @ 18 Mbps -81 dBm @ 24 Mbps -78 dBm @ 36 Mbps -74 dBm @ 48 Mbps -74 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11b: -93 dBm @ 1 Mbps -93 dBm @ 2 Mbps -93 dBm @ 5.5 Mbps -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g: -88 dBm @ 6 Mbps -86 dBm @ 9 Mbps -85 dBm @ 12 Mbps -85 dBm @ 18 Mbps -85 dBm @ 24 Mbps -82 dBm @ 36 Mbps -78 dBm @ 48 Mbps -74 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz): -89 dBm @ MCS0 20 MHz -85 dBm @ MCS1 20 MHz -85 dBm @ MCS2 20 MHz -82 dBm @ MCS3 20 MHz -78 dBm @ MCS4 20 MHz -74 dBm @ MCS5 20 MHz -72 dBm @ MCS6 20 MHz -70 dBm @ MCS7 20 MHz -95 dBm @ MCS8 20 MHz -90 dBm @ MCS9 20 MHz -87 dBm @ MCS10 20 MHz -83 dBm @ MCS11 20 MHz -80 dBm @ MCS12 20 MHz -74 dBm @ MCS13 20 MHz -71 dBm @ MCS14 20 MHz -69 dBm @ MCS15 20 MHz -87 dBm @ MCS0 40 MHz -83 dBm @ MCS1 40 MHz -83 dBm @ MCS2 40 MHz -80 dBm @ MCS3 40 MHz -76 dBm @ MCS4 40 MHz -73 dBm @ MCS5 40 MHz -69 dBm @ MCS6 40 MHz -67 dBm @ MCS7 40 MHz -93 dBm @ MCS8 40 MHz -88 dBm @ MCS9 40 MHz -85 dBm @ MCS10 40 MHz -82 dBm @ MCS11 40 MHz -78 dBm @ MCS12 40 MHz -73 dBm @ MCS13 40 MHz -69 dBm @ MCS14 40 MHz -67 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11n (5 GHz): -88 dBm @ MCS0 20 MHz -85 dBm @ MCS1 20 MHz -82 dBm @ MCS2 20 MHz -79 dBm @ MCS3 20 MHz -76 dBm @ MCS4 20 MHz -71 dBm @ MCS5 20 MHz -70 dBm @ MCS6 20 MHz -69 dBm @ MCS7 20 MHz -95 dBm @ MCS8 20 MHz -91 dBm @ MCS9 20 MHz -87 dBm @ MCS10 20 MHz -80 dBm @ MCS11 20 MHz -78 dBm @ MCS12 20 MHz -74 dBm @ MCS13 20 MHz -72 dBm @ MCS14 20 MHz -71 dBm @ MCS15 20 MHz -84 dBm @ MCS0 40 MHz -81 dBm @ MCS1 40 MHz -77 dBm @ MCS2 40 MHz -75 dBm @ MCS3 40 MHz -71 dBm @ MCS4 40 MHz -67 dBm @ MCS5 40 MHz -64 dBm @ MCS6 40 MHz -63 dBm @ MCS7 40 MHz -90 dBm @ MCS8 40 MHz -85 dBm @ MCS9 40 MHz -82 dBm @ MCS10 40 MHz -81 dBm @ MCS11 40 MHz -77 dBm @ MCS12 40 MHz -73 dBm @ MCS13 40 MHz -71 dBm @ MCS14 40 MHz -68 dBm @ MCS15 40 MHz
  • WLAN Operation Mode: Access point, Client, Client-Router, Sniffer
  • Antenna Connectors: QMA
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -88 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -74 @ 54 Mbps Note
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -68 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -93 dBm @ 1 Mbps Typ. -93 dBm @ 2 Mbps Typ. -93 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -88 dBm @ 6 Mbps Typ. -86 dBm @ 9 Mbps Typ. -85 dBm @ 12 Mbps Typ. -85 dBm @ 18 Mbps Typ. -85 dBm @ 24 Mbps Typ. -82 dBm @ 36 Mbps Typ. -78 dBm @ 48 Mbps Typ. -74 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -89 dBm @ MCS0 20 MHz Typ. -85 dBm @ MCS1 20 MHz Typ. -85 dBm @ MCS2 20 MHz Typ. -82 dBm @ MCS3 20 MHz Typ. -78 dBm @ MCS4 20 MHz Typ. -74 dBm @ MCS5 20 MHz Typ. -72 dBm @ MCS6 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -95 dBm @ MCS8 20 MHz Typ. -90 dBm @ MCS9 20 MHz Typ. -87 dBm @ MCS10 20 MHz Typ. -83 dBm @ MCS11 20 MHz Typ. -80 dBm @ MCS12 20 MHz Typ. -74 dBm @ MCS13 20 MHz Typ. -71 dBm @ MCS14 20 MHz Typ. -69 dBm @ MCS15 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -83 dBm @ MCS1 40 MHz Typ. -83 dBm @ MCS2 40 MHz Typ. -80 dBm @ MCS3 40 MHz Typ. -76 dBm @ MCS4 40 MHz Typ. -73 dBm @ MCS5 40 MHz Typ. -69 dBm @ MCS6 40 MHz Typ. -67 dBm @ MCS7 40 MHz Typ. -93 dBm @ MCS8 40 MHz Typ. -88 dBm @ MCS9 40 MHz Typ. -85 dBm @ MCS10 40 MHz Typ. -82 dBm @ MCS11 40 MHz Typ. -78 dBm @ MCS12 40 MHz Typ. -73 dBm @ MCS13 40 MHz Typ. -69 dBm @ MCS14 40 MHz Typ. -67 dBm @ MCS15 40 MHz

Ethernet Interface

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1, AWK-3131A-M12-RTG only
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3af for PoE IEEE 802.1Q for VLAN Tagging
  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only)
  • 100BaseFX Ports (single-mode SC connector): 1, AWK-3131A-SSC-RTG only
  • Optical Fiber: Typical Distance
  • Optical Fiber: 100BaseFX
  • Optical Fiber: Wavelength
  • Optical Fiber: 1310 nm
  • Optical Fiber: Max. TX
  • Optical Fiber: 0 dBm
  • Optical Fiber: Min. TX
  • Optical Fiber: -5 dBm
  • Optical Fiber: RX Sensitivity
  • Optical Fiber: -34 dBm
  • Optical Fiber: Link Budget
  • Optical Fiber: 29 dB
  • Optical Fiber: Typical Distance
  • Optical Fiber: 40 km

Ethernet Software Features

  • Management: General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCPAP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)
  • Security: RADIUS

Firewall

  • Filter: MAC/IP Protocol/Port-based

Serial Interface

  • Console Port: RS-232 (RJ45-type)

LED Interface

  • LED Indicators: PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only)*PoE is only available for the AWK-3131A-M12-RTG

Input/Output Interface

  • Digital Inputs: 2 +13 to +30 V for state 1 +3 to -30 V for state 0 Max. input current: 8 mA
  • Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons: Reset button

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
  • Weight: 850 g (1.87 lb)
  • Installation: DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

  • Input Current: AWK-3131A-M12-RTG: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC AWK-3131A-SSC-RTG: 1.0 A @ 12 VDC, 0.27 A @ 48 VDC
  • Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
  • Power Connector: 1 removable 10-contact terminal block(s)
  • Power Consumption: AWK-3131A-M12-RTG: Maximum 10.5 WAWK-3131A-SSC-RTG: Maximum 13 W
  • Reverse Polarity Protection: Supported

Environmental Limits

  • Operating Temperature: Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class B
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8
  • Railway: EN 50155, EN 50121-4
  • Railway Fire Protection: EN 45545-2
  • Radio: EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA
  • Safety: UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)

MTBF

  • Time: AWK-3131A-M12-RTG: 552,454 hrs AWK-3131A-SSC-RTG: 528,478 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
AWK-3131A-SSC-RTG-JP-T 802.11n railway trackside indoor single radio access point/client, SC, JP band, IP30, -40 to 75°C operating temperature
AWK-3131A-M12-RTG-EU-CT-T 802.11n railway onboard indoor single radio access point/client, M12, EU band, IP30, -40 to 75°C operating temperature, conformal coating
AWK-3131A-M12-RTG-EU-T 802.11n railway onboard indoor single radio access point/client, M12, EU band, IP30, -40 to 75°C operating temperature
AWK-3131A-SSC-RTG-JP-CT-T 802.11n railway trackside indoor single radio access point/client, SC, JP band, IP30, -40 to 75°C operating temperature, conformal coating
AWK-3131A-M12-RTG-US-T 802.11n railway onboard indoor single radio access point/client, M12, US band, IP30, -40 to 75°C operating temperature
AWK-3131A-M12-RTG-JP-CT-T 802.11n railway onboard indoor single radio access point/client, M12, JP band, IP30, -40 to 75°C operating temperature, conformal coating
AWK-3131A-SSC-RTG-US-CT-T 802.11n railway trackside indoor single radio access point/client, SC, US band, IP30, -40 to 75°C operating temperature, conformal coating
AWK-3131A-M12-RTG-JP-T 802.11n railway onboard indoor single radio access point/client, M12, JP band, IP30, -40 to 75°C operating temperature
AWK-3131A-SSC-RTG-US-T 802.11n railway trackside indoor single radio access point/client, SC, US band, IP30, -40 to 75°C operating temperature
AWK-3131A-SSC-RTG-EU-CT-T 802.11n railway trackside indoor single radio access point/client, SC, EU band, IP30, -40 to 75°C operating temperature, conformal coating
AWK-3131A-M12-RTG-US-CT-T 802.11n railway onboard indoor single radio access point/client, M12, US band, IP30, -40 to 75°C operating temperature, conformal coating
AWK-3131A-SSC-RTG-EU-T 802.11n railway trackside indoor single radio access point/client, SC, EU band, IP30, -40 to 75°C operating temperature
