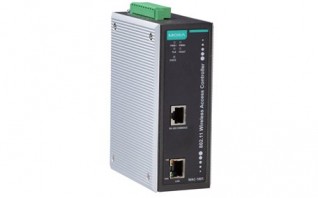

WAC-1001 SERIES

Industrial wireless access controller, 0 to 60°C operating temperature
wac-1001-series
Redundant 12 to 48 VDC power inputs
Controller-based Turbo Roaming (less than 50 ms)
Supported models: AWK-RTG Series, TAP Series
IEEE 802.11i-compliant wireless security
DIN-rail mounting or wall mounting (optional) for on-site installation
-40 to 75°C operating temperature range (-T model)

Input/Output Interface

  • Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector): 1
  • Standards: IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for PoE IEEE 802.3u for 100BaseT(X)
  • Total Port Count: 1
  • Highest Speed: 1G
  • Connections: PoE

Ethernet Software Features

  • Management: IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility
  • Security: HTTPS/SSL, RADIUS, SSH
  • Time Management: NTP Client, SNTP

Serial Interface

  • Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
  • Flow Control: RTS/CTS, XON/XOFF
  • Parity: None, Even, Odd, Space, Mark

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Wireless Access Control

  • Controller Failover Mode: 1-on-1 hot backup
  • Handover Time: 50 ms
  • WLAN Products Supported: 110 radios

Power Parameters

  • Input Current: 0.6 A @ 12 VDC, 0.15 A @ 48 VDC
  • Input Voltage: 12 to 48 VDC, Redundant dual inputs
  • Source of Input Power: PoE (IEEE 802.3af)

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions (without ears): 52.85 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)
  • Weight: 1,060 g (2.34 lb)
  • Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Railway: EN 50121-4, EN 50155
  • Safety: EN 60950-1, IEC 60950-1, UL 60950-1

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 447,425 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
WAC-1001 Industrial wireless access controller, 0 to 60°C operating temperature
WAC-1001-T Industrial wireless access controller, -40 to 75°C operating temperature
