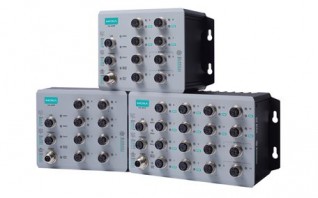

TN-4900 SERIES
Industrial secure router with 8 Gigabit Ethernet ports including 4 Gigabit PoE+ ports, total 50 W power budget, 24 to 110 VDC power input, IP40, -40 to 70°C operating temperature, conformal coating
8 Gigabit ports and up to 12 PoE ports
IEC 61375 ETBN functionality (ETBN models)
Dual bypass relay
Isolated power input range from 24 to 110 VDC
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
-40 to 70°C operating temperature range
Complies with IEC 62443-4-2:2019 Expected to be ready by the end of Q4, 2021.
IEC 61375 ETBN functionality (ETBN models)
Dual bypass relay
Isolated power input range from 24 to 110 VDC
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
-40 to 70°C operating temperature range
Complies with IEC 62443-4-2:2019 Expected to be ready by the end of Q4, 2021.
Ethernet Interface
- 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector): 4
- PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 4
- Standards: IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3ab for 1000BaseT(X) IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.3x for flow control IEEE 802.3u for 100BaseT(X) IEEE 802.1p for Class of Service IEEE 802.3 for 10BaseT
Ethernet Software Features
- Configuration Options: Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility
- Filter: IGMP v1/v2 Static Multicast 802.1Q
- Management: Back Pressure Flow Control SNMP Inform LLDP Syslog HTTP HTTPS Flow control SMTP QoS/CoS/ToS Port Mirror SNMP Trap SNMPv1/v2c/v3 IPv4 Telnet DHCP Server SFTP SCP TFTP RARP Account Management DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255) DHCP Server (Option 1/3/6/12/15/28/42/50/55) DHCP Relay Agent
- Redundancy Protocols: RSTP Static Port Trunk Turbo Ring v2 STP
- Routing Redundancy: VRRP
- Security: Secure Boot IPsec L2TP (server) RADIUS Trust access control
- Time Management: SNTP NTP Server/Client
- Unicast Routing: RIPV1/V2 OSPF Static Route
- Multicast Routing: Static Route
- Railway: TRDP
- Routing Throughput: 450,000 FPS (pure routing)
DoS and DDoS Protection
- Technology: NMAP-ID Scan ARP-Flood SYN/FIN Scan Null Scan ICMP-Death FIN Scan SYN-Flood NEWWithout-SYN Scan Xmas Scan NMAP-Xmas Scan SYN/RST Scan
Firewall
- Filter: ICMP MAC address Ethernet protocols Ports IP address DDoS
- Quick Automation Profiles: DNP DPI EtherCAT EtherNet/IP FOUNDATION Fieldbus FTP HTTP IEC 60870-104 IPsec L2TP LonWorks Modbus TCP PPTP PROFINET RADIUS SSH Telnet VPN
- Stateful Inspection: Router firewall Transparent (bridge) firewall
- Throughput: Max. 350,000 packets per second
Switch Properties
- IGMP Groups: 1024
- MAC Table Size: 16 K
- Max. No. of VLANs: 32
- VLAN ID Range: VID 1 to 4094
LED Interface
- LED Indicators: STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE
NAT
- Features: 1-to-1 Port forwarding N-to-1
Serial Interface
- Console Port: RS-232 (M12 B-coded 5-pin female connector)
USB Interface
- M12 Connector: M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters
- Input Current: 3.6 A @ 24 V
- Input Voltage: 24/36/48/72/96/110 VDC Redundant dual inputs No. of power inputs: 2
- Operating Voltage: 16.8 to 137.5 VDC
- Overload Current Protection: Supported
- Power Connector: M12 K-coded 5-pin male connector
- Reverse Polarity Protection: Supported
- Total PoE Power Budget: 50 W
Physical Characteristics
- Housing: Metal
- Dimensions: 160 x 115 x 100 mm (6.30 x 4.53 x 3.94 in)
- IP Rating: IP40
- Weight: 1640 g (3.62 lb)
- Installation: Wall mounting
- Protection: PCB conformal coating
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 3,000 m
Standards and Certifications
- EMC: EN 55032, EN 55035
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Radio Frequency: FCC
- Railway: EN 50121-4 EN 50155 IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 IEC 60068-2-78 IEC 60571
- Railway Fire Protection: EN 45545-2
- Safety: IEC 62368, UL 62368
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- EMI: CISPR 32, FCC Part 15B Class A
- Salt Spray Test: EN 50155
- Package Drop Test: ISTA 1A
- Package Vibration Test: ISTA 1A
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 644,898 hrs
- Standards: Telcordia SR332 Issue 2
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
IPsec VPN
- Authentication: MD5 and SHA (SHA-256) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate
- Encryption: 3DES DES AES-128 AES-192 AES-256
- Concurrent VPN Tunnels: Max. 250 IPsec VPN tunnels
