MOXA REMOTE CONNECT SUITE

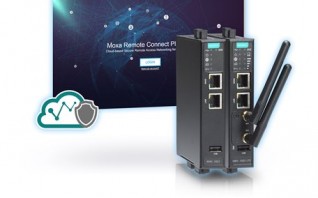

Moxa Remote Connect gateway with 1 LTE cellular port, 2 Ethernet ports, US region, -40 to 70°C operating temperature
Security with embedded firewall and whitelist remote access control
End-to-end data encryption
Support for point-to-point VPN connection to increase efficiency For MRC Quick Link Ultra only
Auto virtual IP mapping eliminates the need for field IP management
Transparent tunnels suitable for existing software tools
Flexibility for defining the relation between remote connections For MRC Quick Link Ultra only
Max. 3000 nodes (gateway and client) with support for 300 concurrent connected nodes More nodes by request
3 years of free basic usage (5 concurrent connected node and 5 GB per month) for quick launch your operations Register by the S/N of Moxa gateway. After the three-year free period expires, you can purchase an add-on license to continue using the service
End-to-end data encryption
Support for point-to-point VPN connection to increase efficiency For MRC Quick Link Ultra only
Auto virtual IP mapping eliminates the need for field IP management
Transparent tunnels suitable for existing software tools
Flexibility for defining the relation between remote connections For MRC Quick Link Ultra only
Max. 3000 nodes (gateway and client) with support for 300 concurrent connected nodes More nodes by request
3 years of free basic usage (5 concurrent connected node and 5 GB per month) for quick launch your operations Register by the S/N of Moxa gateway. After the three-year free period expires, you can purchase an add-on license to continue using the service
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 2
Cellular Interface
- Cellular Standards: LTE CAT-3, UMTS, HSPA, EDGE, GSM, GPRS
- Band Options (US): LTE Band B2 (1900 MHz) / LTE Band B4 (AWS MHz) / LTE Band B5 (850 MHz) / LTE Band B13 (700 MHz) / LTE Band B17 (700 MHz) / LTE Band B25 (1900 MHz) UMTS/HSPA 2100 MHz / 1900 MHz / AWS MHz / 850 MHz / 900 MHz Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
- LTE Data Rate: 10 MHz bandwidth: 50 Mbps DL, 25 Mbps UL 20 MHz bandwidth: 100 Mbps DL, 50 Mbps UL
- GPRS Data Rates: 85.6 kbps DL, 42.8 kbps UL
- EDGE Data Rates: 237 kbps DL, 237 kbps UL (Category 10, 12)
- HSPA Data Rates: 42 Mbps DL, 5.76 Mbps UL (Category 24, 6)
- Antenna Connectors: 2 SMA connector(s)
- Band Options (EU): LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
- Band Option (APAC): LTE Band 19 (850 MHz) / LTE Band 6 (850 MHz) / LTE Band 6 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 3 (1800 MHz) / LTE Band 1 (2100 MHz) UMTS/HSPA 850 MHz / 850 MHz / 900 MHz / 2100 MHz
- Band Options (JP): LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 6 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 19 (850 MHz)UMTS/HSPA 800 MHz / 900 MHz / 1700 MHz / 2100 MHz
LED Interface
- LED Indicators: USB, Power, Internet, Cloud, Key, Cellular Signal, Chain
USB Interface
- USB Standards: USB 2.0
Input/Output Interface
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Relays
- Contact Current Rating: 1 A @ 24 VDC
System Power Parameters
- Input Current: 0.62 A @ 12 VDC
- Input Voltage: 12 to 36 VDC
- Power Consumption: 7.44 W
Physical Characteristics
- Housing: Metal
- Dimensions: 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
- Weight: Packaged: 700 g (1.54 lb)
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMC: EN 61000-6-2/-6-4, EN301489-1-52, EN 55032/35
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Safety: EN 61010-2-201
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
- Radio: RED, TELEC
MTBF
- Time: 561,262 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
MRC Server Software
- Amazon AWS EC2: Supports Amazon AWS EC2 service (can be downloaded from AWS Marketplace)
- Licensing: Apply for an MRC Server License from Moxa’s channels before activating your software portal
MRC Client Software
- Operating System: Windows 10 (32-bit or 64-bit)
Supported Devices
- OnCell Products: MRC Quick Link Ultra and MRC Client v4.0.0:OnCell 3120 (HW Rev 2.0.0; firmware v2.2.0 and higher)OnCell G4302 (firmware v3.9.0 and higher)
- MRC Products: MRC Quick Link and MRC Client v3.3.0:MRC-1002 gateway
