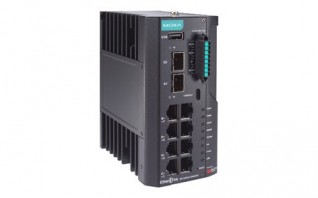

IEF-G9010 SERIES
Industrial IPS firewall with 8 10/100/1000BaseT(X) ports and 2 GbE SFP multiports, centralized management via Security Dashboard Console, 1 year of pattern updates included, -10 to 60°C operating temperature
Compact industrial IPS firewall for network segmentation
Industrial-grade Intrusion Prevention/Detection System (IPS/IDS)
Object-based policy enforcement rules for protocol filtering and traffic control
Easy network setup with Network Address Translation (NAT)
Full OT network visibility when used with Security Dashboard Console (SDC)
-40 to 75°C wide operating temperature range (-T models)
Industrial-grade Intrusion Prevention/Detection System (IPS/IDS)
Object-based policy enforcement rules for protocol filtering and traffic control
Easy network setup with Network Address Translation (NAT)
Full OT network visibility when used with Security Dashboard Console (SDC)
-40 to 75°C wide operating temperature range (-T models)
Input/Output Interface
- Buttons: Reset button
- Digital Input Channels: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
- Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 8
- 1000BaseSFP Slots: 2
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X)
LED Interface
- LED Indicators: PWR1, PWR2, STATE, MGMT, IPS/IDS, HA, FUNC, USB, 10/100 Mbps copper port, 1000 Mbps copper port, 1000 Mbps SFP port
NAT
- Features: N-to-1, 1-to-1, Port forwarding, NAT loopback
- Application Layer Gateway (ALG): SIP H.323 FTP
Ethernet Software Features
- Unicast Routing: Static Route
- Management: SSH, Telnet, NTP Client, DHCP Server/Client, DNS
- Authentication: Local Account Accessibility
DoS and DDoS Protection
- Technology: ICMP Flood, IGMP Flood, UDP Flood, UDP Port Scan, TCP SYN Flood, TCP Port SYN Scan, TCP Port FIN Scan, TCP Port NULL Scan, TCP Port Xmas Scan
Firewall
- Throughput: Max. 360,000 packets per second (max. 1,000 Mbps)
- IPS Throughput: > 450 Mbps when the packet size is greater than 128 bytes
- Concurrent Connections (TCP): 60,000
- Deep Packet Inspection: Modbus TCP Modbus UDP EtherNet/IP PROFINET-DCP CIP Omron FINS SLMP Siemens S7 Comm. Siemens S7 Comm. Plus Additional protocols will be supported through future firmware updates.
- Policy Enforcement Rules: 64 rules
- ICS Protocol Filter Profiles: 32 profiles
- Automatic Pattern Updates via SDC: Yes, 1 year of updates included
- Manual Pattern Updates: Yes, 1 year of updates included
Management
- Supported Interfaces: Web GUI and Security Dashboard Console
Real-Time Firewall / VPN Event Log
- Event Type: Cybersecurity, Policy enforcement, Protocol Filter, Assets detection, System event
- Media: Local storage, Syslog server
Serial Interface
- Console Port: USB Type-C
Power Parameters
- Connection: Removable terminal block
- Input Current: 1.265 A @ 12 VDC, 0.605 A @ 24 VDC, 0.308 A @ 48 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 64 x 105 x 135 mm (2.52 x 4.13 x 5.32 in)
- Weight: 1100 g (2.43 lb)
- Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: UL 60950-1 Ed.2, UL 62368-1
- EMC: EN 55032/35, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4
- Traffic Control: NEMA TS2
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
MTBF
- Time: 1,070,000 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
