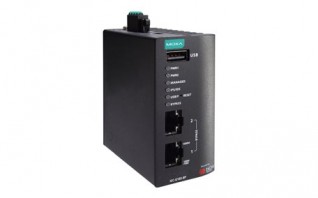

Ultra-compact industrial security box with IPS/IDS
Granular policy enforcement with whitelisting control
LAN Bypass design to prevent a single point of failure and traffic overloading
Bump-in-the-wire installation without impacting the network

Input/Output Interface

• Buttons: Reset button

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 2
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X)

LED Interface

• LED Indicators: PWR1, PWR2, MANAGED, IPS/IDS, USB/F, BYPASS, 10/100/1000M

DoS and DDoS Protection

• Technology: ICMP Flood, IGMP Flood, UDP Flood, TCP SYN Flood, TCP Port SYN Scan, TCP Port FIN Scan, TCP Port NULL Scan, TCP Port Xmas Scan, UDP Port Scan

Firewall

• IPS Throughput: > 200 Mbps
• Concurrent Connection (TCP): 10,000
• Deep Packet Inspection: Modbus TCP Modbus UDP CIP EtherNet/IP PROFINET-DCP SLMP Omron FINS Siemens S7 Comm. Siemens S7 Comm. Plus MELSOFT SECS/GEM TOYOPUC IEC 61850-MMS Additional protocols will be supported through future firmware updates.
• Policy Enforcement Rules: 512 rules
• ICS Protocol Filter Profiles: 32 profiles
• Concurrent Connections (TCP): 30,000
• Automatic Pattern Updates via SDC: Yes, 1 year of updates included
• Manual Pattern Updates: Yes, 1 year of updates included

Real-Time Firewall / VPN Event Log

• Event Type: Cybersecurity, Policy enforcement, Protocol Filter, Assets detection, System event
• Media: Local storage, Syslog server

Serial Interface

• Console Port: USB Type-C

Power Parameters

• Connection: Removable terminal block
• Input Current: 0.605 A @ 12 VDC, 0.297 A @ 24 VDC, 0.143 A @ 48 VDC

Physical Characteristics

• Housing: Metal
• Dimensions: 40 x 70 x 83 mm (1.58 x 2.76 x 3.27 in)
• Weight: 322 g (0.71 lb)
• Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 60950-1 Ed.2, UL 62368-1
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6
• Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D
• Railway: EN 50121-4
• Traffic Control: NEMA TS2

MTBF

• Time: 1,340,000 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Management

• Supported Interfaces: Web GUI Security Dashboard Console (SDC)
