MXVIEW ONE SERIES
MXview One add-on license for power substation package

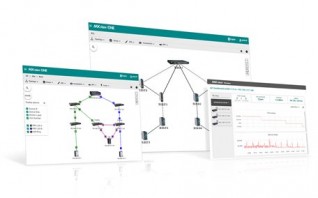

Discovers and visualizes network devices and physical connections automatically
Central management of configurations and firmware for Moxa devices
Multiple options for events and notifications with self-defined threshold and duration
Comprehensive reports, including inventory, traffic, and availability reports
Provides RESTful API and web widget to embed MXview One into industrial applications
Dynamic topology view shows the status of wireless links and connection changes at a glance This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Visual, interactive roaming playback function to review the roaming history of clients This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Detailed device information and performance indicator charts for individual AP and client devices This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Full visibility of A/B LAN redundancy through a visualized PRP/HSR network topology and substation packet flow information This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
GOOSE message path tracking for fast and efficient troubleshooting This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Auto IED discovery within the network topology display by importing SCD files This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Central management of configurations and firmware for Moxa devices
Multiple options for events and notifications with self-defined threshold and duration
Comprehensive reports, including inventory, traffic, and availability reports
Provides RESTful API and web widget to embed MXview One into industrial applications
Dynamic topology view shows the status of wireless links and connection changes at a glance This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Visual, interactive roaming playback function to review the roaming history of clients This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Detailed device information and performance indicator charts for individual AP and client devices This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Full visibility of A/B LAN redundancy through a visualized PRP/HSR network topology and substation packet flow information This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
GOOSE message path tracking for fast and efficient troubleshooting This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Auto IED discovery within the network topology display by importing SCD files This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. An active MXview One license is required in order to activate the add-on license.
Hardware Requirements
- CPU: Quad-core CPU or better
- RAM: 16 GB or higher
- Hardware Disk Space: 1 TB SSD or higher
- OS: Windows 10 (64-bit)Windows 11 (64-bit)Windows Server 2016 (64-bit)Windows Server 2019 (64-bit)Windows Server 2022 (64-bit)Linux Ubuntu 18.04Linux Ubuntu 20.04Linux Ubuntu 22.04
Management
- Supported Interfaces: SNMPv1/v2c/v3 and ICMP
Supported Devices
- AWK Products: AWK-1121 Series (v1.4 or higher)AWK-1127 Series (v1.4 or higher)AWK-1131A Series (v1.11 or higher)AWK-1137C Series (v1.1 or higher)AWK-1151C Series (v2.0 or higher)AWK-1161A Series (v1.0 or higher)AWK-1161C Series (v1.0 or higher)AWK-1165A Series (v1.0 or higher)AWK-1165C Series (v1.0 or higher)AWK-3121 Series (v1.6 or higher)AWK-3131 Series (v1.1 or higher)AWK-3131A Series (v1.3 or higher)AWK-3131A-M12-RTG Series (v1.8 or higher)AWK-3252A Series (v2.0 or higher) AWK-4121 Series (v1.6 or higher)AWK-4131 Series (v1.1 or higher)AWK-4131A Series (v1.3 or higher)AWK-4252A Series (v2.0 or higher)
- DA Products: DA-820C Series (v1.0 or higher) DA-682C Series (v1.0 or higher) DA-681C Series (v1.0 or higher) DA-720 Series (v1.0 or higher)
- EDR Products: EDR-G903 Series (v2.1 or higher)EDR-G902 Series (v1.0 or higher)EDR-810 Series (v3.2 or higher)EDR-8010 Series (v3.1 or higher)EDR-G9004 Series (v3.10 or higher)EDR-G9010 Series (v1.0 or higher)
- EDS Products: EDS-405A/408A Series (v2.6 or higher)EDS-405A/408A-EIP Series (v3.0 or higher)EDS-405A/408A-PN Series (v3.1 or higher)EDS-405A-PTP Series (v3.3 or higher)EDS-505A/508A/516A Series (v2.6 or higher)EDS-510A Series (v2.6 or higher)EDS-518A Series (v2.6 or higher)EDS-510E/518E Series (v4.0 or higher)EDS-528E Series (v5.0 or higher)EDS-G508E/G512E/G516E Series (v4.0 or higher)EDS-G512E-8PoE Series (v4.0 or higher)EDS-608/611/616/619 Series (v1.1 or higher)EDS-728 Series (v2.6 or higher)EDS-828 Series (v2.6 or higher)EDS-G509 Series (v2.6 or higher)EDS-P510 Series (v2.6 or higher)EDS-P510A-8PoE Series (v3.1 or higher)EDS-P506A-4PoE Series (v2.6 or higher)EDS-P506 Series (v5.5 or higher)EDS-4008 Series (v2.2 or higher)EDS-4009 Series (v2.2 or higher)EDS-4012 Series (v2.2 or higher)EDS-4014 Series (v2.2 or higher)EDS-G4008 Series (v2.2 or higher)EDS-G4012 Series (v2.2 or higher)EDS-G4014 Series (v2.2 or higher)
- EOM Products: EOM-104/104-FO Series (v1.2 or higher)
- ICS Products: ICS-G7526/G7528 Series (v1.0 or higher)ICS-G7826/G7828 Series (v1.1 or higher)ICS-G7748/G7750/G7752 Series (v1.2 or higher)ICS-G7848/G7850/G7852 Series (v1.2 or higher)ICS-G7526A/G7528A Series (v4.0 or higher)ICS-G7826A/G7828A Series (v4.0 or higher)ICS-G7748A/G7750A/G7752A Series (v4.0 or higher)ICS-G7848A/G7850A/G7852A Series (v4.0 or higher)
- IEX Products: IEX-402-SHDSL Series (v1.0 or higher)IEX-402-VDSL2 Series (v1.0 or higher)IEX-408E-2VDSL2 Series (v4.0 or higher)
- IKS Products: IKS-6524/6526 Series (v2.6 or higher)IKS-G6524 Series (v1.0 or higher)IKS-G6824 Series (v1.1 or higher)IKS-6726A/6728A Series (v4.0 or higher)IKS-G6524A Series (v4.0 or higher)IKS-G6824A Series (v4.0 or higher)IKS-6728A-8PoE Series (v4.0 or higher)
- ioLogik Products: ioLogik E2210 Series (v3.7 or higher)ioLogik E2212 Series (v3.7 or higher)ioLogik E2214 Series (v3.7 or higher)ioLogik E2240 Series (v3.7 or higher)ioLogik E2242 Series (v3.7 or higher)ioLogik E2260 Series (v3.7 or higher)ioLogik E2262 Series (v3.7 or higher)ioLogik W5312 Series (v1.7 or higher)ioLogik W5340 Series (v1.8 or higher)
- ioThinx Products: ioThinx 4510 Series (v1.3 or higher)
- MC Products: MC-7400 Series (v1.0 or higher)
- MDS Products: MDS-G4012 Series (v1.0 or higher)MDS-G4020 Series (v1.0 or higher)MDS-G4028 Series (v1.0 or higher)MDS-G4012-L3 Series (v2.0 or higher)MDS-G4020-L3 Series (v2.0 or higher)MDS-G4028-L3 Series (v2.0 or higher)MDS-G4012-4XGS Series (v3.0 or higher)MDS-G4020-4XGS Series (v3.0 or higher)MDS-G4028-4XGS Series (v3.0 or higher)MDS-G4012-L3-4XGS Series (v3.0 or higher)MDS-G4020-L3-4XGS Series (v3.0 or higher)MDS-G4028-L3-4XGS Series (v3.0 or higher)
- MGate Products: MGate MB3170/MB3270 Series (v4.2 or higher)MGate MB3180 Series (v2.2 or higher)MGate MB3280 Series (v4.1 or higher)MGate MB3480 Series (v3.2 or higher)MGate MB3660 Series (v2.5 or higher)MGate 5101-PBM-MN Series (v2.2 or higher)MGate 5102-PBM-PN Series (v2.3 or higher)MGate 5103 Series (v2.2 or higher)MGate 5105-MB-EIP Series (v4.3 or higher)MGate 5109 Series (v2.3 or higher)MGate 5111 Series (v1.3 or higher)MGate 5114 Series (v1.3 or higher)MGate 5118 Series (v2.2 or higher)MGate 5119 Series (v1.0 or higher)MGate 5121 Series (v1.0 or higher) MGate 5122 Series (v1.0 or higher) MGate 5123 Series (v1.0 or higher)MGate 5134 Series (v1.0 or higher)MGate 5135/5435 Series (v1.0 or higher) MGate 5192 Series (v1.0 or higher)MGate W5108/W5208 Series (v2.4 or higher)MGate 5217I Series (v1.0 or higher)
- NPort Products: NPort S8455 Series (v1.3 or higher)NPort S8458 Series (v1.3 or higher)NPort 5110 Series (v2.10 or higher)NPort 5130/5150 Series (v3.9 or higher)NPort 5200 Series (v2.12 or higher)NPort 5100A Series (v1.6 or higher)NPort P5150A Series (v1.6 or higher)NPort 5200A Series (v1.6 or higher)NPort 5400 Series (v3.14 or higher)NPort 5600 Series (v3.10 or higher)NPort 5610-8-DT/5610-8-DT-J/5650-8-DT/5650I-8-DT/5650-8-DT-J Series (v2.7 or higher)NPort 5610-8-DTL/5650-8-DTL/5650I-8-DTL Series (v1.6 or higher)NPort IA5000 Series (v1.7 or higher)NPort IA5150A/IA5150AI/IA5250A/IA5250AI Series (v1.5 or higher)NPort IA5450A/IA5450AI Series (v2.0 or higher)NPort 6000 Series (v1.21 or higher)NPort 5000AI-M12 Series (v1.5 or higher)
- PT Products: PT-7528 Series (v3.0 or higher)PT-7710 Series (v1.2 or higher)PT-7728 Series (v2.6 or higher)PT-7828 Series (v2.6 or higher)PT-508/510 Series (v3.0 or higher)PT-G503-PHR-PTP Series (v4.0 or higher)PT-G510 Series (v6.4 or higher)PT-G7728 Series (v5.3 or higher)PT-G7828 Series (v5.3 or higher)
- RKS Products: RKS-G4028 Series (v3.0 or higher)
- SDS Products: SDS-3008 Series (v2.1 or higher)SDS-3016 Series (v2.1 or higher)
- TAP Products: TAP-213 Series (v1.2 or higher)TAP-323 Series (v1.8 or higher)TAP-6226 Series (v1.8 or higher)
- TN Products: TN-4908 Full FE/FE+GbE Series (v3.4 or higher)TN-4908 Full GbE Series (v1.2 or higher)TN-4916-12 FE Series (v3.4 or higher)TN-4916-8PoE Series (v1.2 or higher)TN-4512A Series (v3.10 or higher)TN-4516A Series (v3.6 or higher)TN-4516A PoE Series (v3.6 or higher)TN-4520A PoE Series (v3.10 or higher)TN-4524A PoE Series (v3.6 or higher)TN-4528A PoE Series (v3.8 or higher)TN-G4516 PoE Series (v5.0 or higher)TN-G6512 PoE Series (v5.2 or higher)TN-5508A/5510A Series (v3.8 or higher)TN-5516A/5518A Series (v3.8 or higher)TN-5508A/5510A PoE Series (v3.8 or higher)TN-5516A/5518A PoE Series (v3.8 or higher)
- UC Products: UC-2101-LX Series (v1.7 or higher)UC-2102-LX Series (v1.7 or higher)UC-2104-LX Series (v1.7 or higher)UC-2111-LX Series (v1.7 or higher)UC-2112-LX Series (v1.7 or higher)UC-2112-T-LX Series (v1.7 or higher)UC-2114-T-LX Series (v1.7 or higher)UC-2116-T-LX Series (v1.7 or higher)UC-1222A Series (v1.0 or higher)UC-2222A Series (v1.0 or higher)UC-8200 Series with Moxa Industrial Linux 3 (MIL 3) (v1.1 or higher)
- V Products: V2406C Series (v1.0 or higher)
- VPort Products: VPort 26A-1MP Series (v1.2 or higher)VPort 36-1MP Series (v1.1 or higher)VPort P06-1MP-M12 Series (v2.2 or higher)
- WAC Products: WAC-1001 Series (v2.1 or higher)WAC-2004 Series (v1.6 or higher)
- For MXview Wireless: AWK-1131A Series (v1.22 or higher)AWK-1137C Series (v1.6 or higher)AWK-1151C Series (v2.0 or higher) AWK-1161A Series (v1.0 or higher)AWK-1161C Series (v1.0 or higher)AWK-1165A Series (v1.0 or higher)AWK-1165C Series (v1.0 or higher)AWK-3252A Series (v2.0 or higher) AWK-3131A Series (v1.16 or higher)AWK-4131A Series (v1.16 or higher)AWK-4252A Series (v2.0 or higher)Note: To use advanced wireless functions in MXview Wireless, the device must be in one of the following operation modes: AP, Client, Client-Router.
- For MXview Power: Supports PRP/HSR only:PT-G503 Series (v5.1 or higher)PT-G510 Series (v6.4 or higher)DA-820C Series with DN-PRP-HSR-I210 or DA-PRP-HSR-I210 (OS Windows 10 or higher)Supports PRP/HSR and GOOSE Check:PT-G7728/G7828 with LM-7000H-2GPHR module (v6.2 or higher)
- OnCell Products: OnCell G4302-LTE4 Series (v2.5 or higher)
- EDF Products: EDF-G1002-BP Series (v3.10 or higher)
- MRX Products: MRX-G4064 Series (v1.0 or higher)MRX-Q4064 Series (v1.0 or higher)
