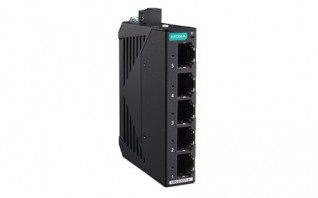

EDS-G2005-EL SERIES
Unmanaged full Gigabit Ethernet switch with 5 10/100/1000 BaseT(X) ports, 12/24/48 power input, metal housing, -10 to 60°C operating temperature
Full Gigabit Ethernet ports
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40-rated metal housing
-40 to 75°C wide operating temperature range (-T models)
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40-rated metal housing
-40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 5 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.1p for Class of Service IEEE 802.3x for flow control
Switch Properties
- Processing Type: Store and Forward
- MAC Table Size: 4 K
- Packet Buffer Size: 1.5 Mbits
DIP Switch Configuration
- Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
- Connection: 1 removable 2-contact terminal block(s)
- Input Current: 0.21 A (max.)
- Input Voltage: 12/24/48 VDC
- Operating Voltage: 9.6 to 60 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Dimensions: 18 x 81 x 65 mm (0.71 x 3.19 x 2.56 in)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- Weight: 120 g (0.26 lb)
- Housing: Metal
Environmental Limits
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Standards and Certifications
- Safety: UL 61010-2-201 EN 62368-1 (LVD)
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR, 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
MTBF
- Time: 3,404,784 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
