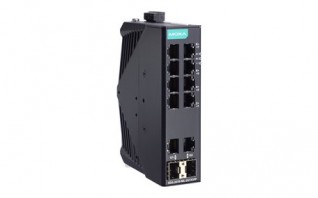

EDS-2010-ML SERIES
Unmanaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48 power inputs, -10 to 60°C operating temperature
2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
QoS supported to process critical data in heavy traffic
Relay output warning for power failure and port break alarm
IP30-rated metal housing
Redundant dual 12/24/48 VDC power inputs
-40 to 75°C operating temperature range (-T models)
QoS supported to process critical data in heavy traffic
Relay output warning for power failure and port break alarm
IP30-rated metal housing
Redundant dual 12/24/48 VDC power inputs
-40 to 75°C operating temperature range (-T models)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
- Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 2 Auto negotiation speed Auto MDI/MDI-X connection Full/Half duplex mode
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.1p for Class of Service
DIP Switch Configuration
- Ethernet Interface: Quality of Service (QoS) Broadcast storm protection Port break alarm
Input/Output Interface
- Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
Switch Properties
- MAC Table Size: 8 K
- Packet Buffer Size: 4 Mbits
- Processing Type: Store and Forward
Power Parameters
- Connection: 1 removable 6-contact terminal block(s)
- Input Current: 0.251 A @ 24 VDC
- Input Voltage: 12/24/48 VDC Redundant dual inputs
- Operating Voltage: 9.6 to 60 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
- Weight: 498 g (1.10 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: UL 61010-2-201 EN 62368-1(LVD)
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Traffic Control: NEMA TS2
- Hazardous Locations: Class I Division 2 ATEX IECEx
- Maritime: DNV LR ABS NK
MTBF
- Time: 2,174,016 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
