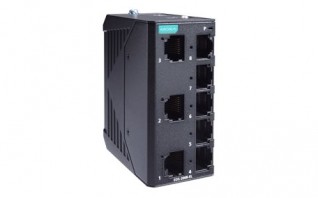

EDS-2008-EL SERIES
Unmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports, 12/24/48 power input, metal housing, -10 to 60°C operating temperature
10/100BaseT(X) (RJ45 connector)
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40-rated metal housing
-40 to 75°C wide operating temperature range (-T models)
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40-rated metal housing
-40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): EDS-2008-EL: 8EDS-2008-EL-M-ST: 7EDS-2008-EL-M-SC: 7 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
- 100BaseFX Ports (multi-mode SC connector): EDS-2008-EL-M-SC: 1
- 100BaseFX Ports (multi-mode ST connector): EDS-2008-EL-M-ST: 1
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of Service
- Optical Fiber: 1
- Optical Fiber: 100BaseFX
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Fiber Cable Type
- Optical Fiber: OM1
- Optical Fiber: 50/125 µm
- Optical Fiber: G.652
- Optical Fiber: 800 MHz x km
- Optical Fiber: Typical Distance
- Optical Fiber: 4 km
- Optical Fiber: 5 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 1300
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 1260 to 1360
- Optical Fiber: 1280 to 1340
- Optical Fiber: RX Range (nm)
- Optical Fiber: 1100 to 1600
- Optical Fiber: 1100 to 1600
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: -10 to -20
- Optical Fiber: 0 to -5
- Optical Fiber: RX Range (dBm)
- Optical Fiber: -3 to -32
- Optical Fiber: -3 to -34
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 12
- Optical Fiber: 29
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 3
- Optical Fiber: 1
- Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Switch Properties
- Processing Type: Store and Forward
- MAC Table Size: 2 K
- Packet Buffer Size: 768 kbits
DIP Switch Configuration
- Ethernet Interface: , Broadcast Storm Protection (BSP)
Power Parameters
- Connection: 1 removable 2-contact terminal block(s)
- Input Current: EDS-2008-EL: 0.052A @ 24 VDCEDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.082A @ 24 VDC
- Input Voltage: 12/24/48 VDC
- Operating Voltage: 9.6 to 60 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- Weight: 169 g (0.37 lb)
- Housing: Metal
- Dimensions: EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector)EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)
Environmental Limits
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Operating Temperature: EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F)EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Standards and Certifications
- Safety: UL 61010-2-201 EN 62368-1
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 22, 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
MTBF
- Time: 3,696,394 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
