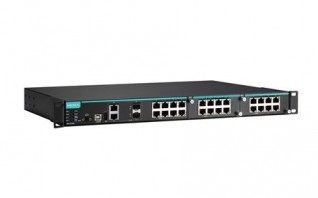

IKS-6726A SERIES

Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature
iks-6726a-series
2 Gigabit plus 24 Fast Ethernet ports for copper and fiber
Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
Modular design lets you choose from a variety of media combinations
-40 to 75°C operating temperature range
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery

Input/Output Interface

  • Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 8
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP): 2
  • Module: See the IM-6700A datasheet for Fast Ethernet module product information.
  • Module: See the IM-6700A datasheet for Fast Ethernet module product information.
  • Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

  • Management: Back Pressure Flow Control BOOTP DDM DHCP Option 66/67/82 DHCP Server/Client Flow control IPv4/IPv6 LLDP Port Mirror RARP RMON SCP SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
  • Filter: 802.1Q BPDU Filter BPDU Guard GMRP GVRP IGMP v1/v2/v3
  • Redundancy Protocols: Link Aggregation MRP MSTP RSTP STP Turbo Chain Turbo Ring v1/v2 V-ON
  • Security: Access control list Broadcast storm protection HTTPS/SSL MAB authentication NTP authentication Port Lock RADIUS SSH TACACS+
  • Time Management: SNTP
  • Industrial Protocols: EtherNet/IP Modbus TCP PROFINET
  • MIB: Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB

Switch Properties

  • IGMP Groups: 2048
  • Jumbo Frame Size: 9.6 KB
  • MAC Table Size: 16 K
  • Max. No. of VLANs: 64
  • Packet Buffer Size: 12 Mbits
  • Priority Queues: 4
  • VLAN ID Range: VID 1 to 4094

USB Interface

  • Storage Port: USB Type A

Serial Interface

  • Console Port: USB-serial console (Type B connector)

Power Parameters

  • Input Voltage: 110/220 VAC Redundant dual inputs
  • Operating Voltage: 85 to 264 VAC
  • Overload Current Protection: Supported
  • Reverse Polarity Protection: Supported
  • Input Current: 1.1/0.6 A @ 24/48 VDC 0.46/0.31 A @ 110/220 VAC Note: These are the input current ratings for the device with the maximum number of modules installed.
  • Power Consumption (Max.): 26.4/28.8 W @ 24/48 VDC 29.28/31.92 W @ 110/220 VAC Note: These are the power consumption ratings for the device with the maximum number of modules installed.

Physical Characteristics

  • IP Rating: IP30
  • Dimensions: 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
  • Weight: 4100 g (9.05 lb)
  • Installation: Rack mounting

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: EN 60950-1 UL 60950-1
  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Railway: EN 50121-4
  • Maritime: ABS DNV LR NK
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 932,847 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
IKS-6726A-2GTXSFP-24-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 1 isolated power supply (24 VDC), -40 to 75°C operating temperature
IKS-6726A-2GTXSFP-HV-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for Fast Ethernet modules, front cabling, 1 isolated power supply (85 to 264 VAC), -40 to 75°C operating temperature
IKS-6726A-2GTXSFP-48-48-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 2 isolated power supplies (48 VDC), -40 to 75°C operating temperature
IKS-6726A-2GTXSFP-48-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 1 isolated power supply (48 VDC), -40 to 75°C operating temperature
IKS-6726A-2GTXSFP-24-24-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 2 isolated power supplies (24 VDC), -40 to 75°C operating temperature
IKS-6726A-2GTXSFP-HV-HV-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature
