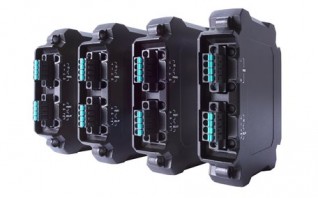

PWR-100 POWER MODULE SERIES

Power module for the EDS-4000/G4000 Series with 12/24/48 VDC redundant dual inputs, 9.6 to 60 VDC operating voltage
pwr-100-power-module-series
Rotatable design for versatile installation
Wide range of power input options for flexible deployment

Power Parameters

  • Note: The EDS-4000/G4000 Series device model name and power parameters are determined by the installed PWR-100 power module.PWR-100–LV: -LV/-LV-T modelsPWR-105-HV-I: -HV/-HV-T modelsPWR-101-LV-BP-I: -LVA/-LVA-T models (PoE support)PWR-103-LV-VB-I: -LVB/-LVB-T models (PoE support)For example:EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-TEDS-G4008-T + PWR-105-HV-I = EDS-G4008-HVTIf you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4008-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.Power over Ethernet:Only the EDS-4008-4P-2GT-2GS(-T), EDS-4012-8P-4GS(-T), and EDS-G4012-8P-4QGS(-T) models support PoE. If a PoE-capable PWR-100 Series module (PWR-101-LV-BP-I, PWR-103-LV-VB-I) is installed into an EDS-4000/G4000 Series non-PoE model, PoE functionality will not be available.
  • Connection: 2 removable 4-contact terminal block(s)
  • Input Voltage: 12/24/48 VDC VDC
  • Operating Voltage: 9.6 to 60 VDC
  • Input Current: 12 to 48 VDC, 1.50 to 0.40 A or 24 VDC, 0.70 A
  • No. of Power Inputs: Redundant dual inputs
  • Inrush Current (Max.): Max. 0.8 A @ 48 VDC (0.1 to 1 ms)
  • Overload Current Protection: Supported
  • Reverse Polarity Protection: Supported

Physical Characteristics

  • Dimensions: 103 x 98 x 26.6 mm (4.06 x 3.86 x 1.02 in)
  • Weight: 142 g (31 lb)

Environmental Limits

  • Operating Temperature: The operating temperature is dependent on the EDS-4000/G4000 switch the module is installed in. Please refer to the respective EDS-4000/G4000 Series datasheet for more information.
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: EN 62368-1 (LVD)
  • EMI: FCC Part 15 Subpart B Class A
  • EMC: EN 55032/35 EN 61000-6-2/-6-4
  • EMS: EN 61000-4-2 (ESD) Level 4EN 61000-4-3 (RS) Level 3EN 61000-4-4 (EFT) Level 4EN 61000-4-5 (Surge) Level 4EN 61000-4-6 (CS) Level 3EN 61000-4-8 Level 4
  • Vibration: ISTA 1A

Warranty

  • Warranty Period: 5 years

Available Models

Model No. Description Quantity
PWR-100-LV Power module for the EDS-4000/G4000 Series with 12/24/48 VDC redundant dual inputs, 9.6 to 60 VDC operating voltage
PWR-105-HV-I Power module for the EDS-4000/G4000 Series with 110/220 VDC/VAC single input, power isolation, 88 to 300 VDC or 85 to 264 VAC operating voltage
PWR-103-LV-VB-I Power module for PoE models in the EDS-4000/G4000 Series with 12/24/48 VDC redundant dual inputs, power isolation, 12 to 57 VDC operating voltage (>52 VDC for PoE+ output recommended)
PWR-101-LV-BP-I Power module for PoE models in the EDS-4000/G4000 Series with 48 VDC redundant dual inputs, power isolation, 44 to 57 VDC operating voltage (>52 VDC for PoE+ output recommended)
