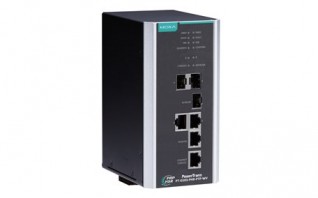

PT-G503 SERIES
IEC 61850-3 and IEC 62439-3 full Gigabit managed redundancy box, with 3 10/100/1000BaseT(X) ports or 100/1000Base SFP ports, 1 10/100/1000BaseT(X) Ethernet console port, 1 isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature
IEC 61850-3, IEEE 1613 (power substations) compliant
IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
PRP/HSR Coupling and QuadBox functions supported
Ethernet console reserved for local access
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
Hardware-based IEEE 1588v2 PTP supported
Design ready for NERC CIP compliant system development
Power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
-40 to 85°C operating temperature range
IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
PRP/HSR Coupling and QuadBox functions supported
Ethernet console reserved for local access
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
Hardware-based IEEE 1588v2 PTP supported
Design ready for NERC CIP compliant system development
Power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
-40 to 85°C operating temperature range
Ethernet Interface
- Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 3
- Console Port: Ethernet console (10/100/1000Mbps RJ45)
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
- Filter: Static Multicast
- Industrial Protocols: Modbus TCP
- Management: Back Pressure Flow Control, BOOTP, DHCP Client, Fiber check, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet
- Power Substation: MMS
- Redundancy Protocols: HSR, PRP, RSTP grouping
- Security: HTTPS/SSL, TACACS+, RADIUS, SSH, Trust access control
- Time Management: NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based)
- MIB: IEC 62439-3 MIB
USB Interface
- Storage Port: USB Type A
Serial Interface
- Console Port: USB-serial console (Type B connector)
Input/Output Interface
- Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Power Parameters
- Input Voltage: 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
- Input Current: 0.260/0.170 A @ 110/220 VAC 0.150/0.080 A @ 110/220 VDC
- Power Connector: 1 removable 5-contact terminal block(s)
Physical Characteristics
- Housing: Aluminum
- IP Rating: IP40
- Dimensions (without ears): 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)
- Weight: 1210 g (2.69 lb)
- Installation: DIN-rail mounting
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: UL 508
- EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
- Power Substation: IEC 61850-3, IEEE 1613
- Railway: EN 50121-4
MTBF
- Time: 566,844 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
