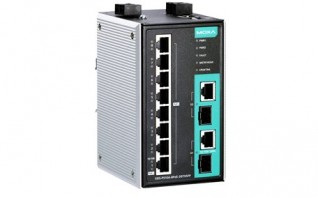

EDS-P510A SERIES
Managed Gigabit Ethernet switch with 8 PoE/PoE+ 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE Series Gigabit/Fast Ethernet modules, 0 to 60°C operating temperature
8 built-in PoE+ ports compliant with IEEE 802.3af/at
Up to 36 W output per PoE+ port
3 kV LAN surge protection for extreme outdoor environments
PoE diagnostics for powered-device mode analysis
2 Gigabit combo ports for high-bandwidth and long-distance communication
Operates with 240 watts full PoE+ loading at -40 to 75°C
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery
Up to 36 W output per PoE+ port
3 kV LAN surge protection for extreme outdoor environments
PoE diagnostics for powered-device mode analysis
2 Gigabit combo ports for high-bandwidth and long-distance communication
Operates with 240 watts full PoE+ loading at -40 to 75°C
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery
Ethernet Interface
- Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 2 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
- PoE Ports (10/100BaseT(X), RJ45 connector): 8 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
- Filter: GMRP, GVRP, IGMP v1/v2, Port-based VLAN
- Industrial Protocols: EtherNet/IP, Modbus TCP
- Management: Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
- MIB: Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
- Redundancy Protocols: LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
- Security: HTTPS/SSL, Port Lock, RADIUS, TACACS+, SSH
- Time Management: NTP Server/Client, SNTP
Switch Properties
- IGMP Groups: 1024
- MAC Table Size: 8 K
- Max. No. of VLANs: 64
- Packet Buffer Size: 1 Mbits
- Priority Queues: 4
- VLAN ID Range: VID 1 to 4094
Serial Interface
- Console Port: RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
- Ethernet Interface: Turbo Ring, Master, Coupler, Reserve
Input/Output Interface
- Alarm Contact Channels: 1, Relay output with current carrying capacity of 0.5 A @ 48 VDC
- Digital Input Channels: 1
- Digital Inputs: Max. input current: 8 mA +13 to +30 V for state 1 -30 to +3 V for state 0
Power Parameters
- Input Voltage: 48 VDC, Redundant dual inputs
- Operating Voltage: 44 to 57 VDC
- Input Current: 5.36 A @ 48 VDC
- Power Consumption (Max.): Max. 17.28 W full loading without PDs’ consumption
- Power Budget: Max. 240 W for total PD consumption Max. 36 W for each PoE port
- Connection: 2 removable 2-contact terminal block(s)
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)
- Weight: 1030 g (2.28 lb)
- Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: UL 508
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Hazardous Locations: Class I Division 2
- Railway: EN 50121-4
- Traffic Control: NEMA TS2
- Freefall: IEC 60068-2-31
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: 708,972 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
