Built-in 4 PoE+ ports support up to 60 W output per port
Wide-range 12/24/48 VDC power inputs for flexible deployment
Smart PoE functions for remote power device diagnosis and failure recovery
2 Gigabit combo ports for high-bandwidth communication
Supports MXstudio for easy, visualized industrial network management

Ethernet Interface

• Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 2 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
• PoE Ports (10/100BaseT(X), RJ45 connector): 4 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
• Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

• Filter: 802.1Q VLAN BPDU Filter BPDU Guard GMRP GVRP IGMP v1/v2/v3 Port-based VLAN
• Industrial Protocols: EtherNet/IP Modbus TCP PROFINET
• Management: Back Pressure Flow Control BOOTP DDM DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP RMON SCP SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
• MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
• Redundancy Protocols: Link Aggregation MRP MSTP RSTP STP Turbo Chain Turbo Ring v1/v2
• Security: Broadcast storm protection HTTPS/SSL MAC ACL TACACS+ MAB authentication Sticky MAC NTP authentication Port Lock RADIUS SSH
• Time Management: IEEE 1588v2 PTP (software-based) NTP Server/Client SNTP

Switch Properties

• IGMP Groups: 256
• Jumbo Frame Size: 9.6 KB
• MAC Table Size: 8 K
• Max. No. of VLANs: 64
• Packet Buffer Size: 12 Mbits
• Priority Queues: 4
• VLAN ID Range: VID 1 to 4094

USB Interface

• Storage Port: USB Type A

LED Interface

• LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 10/100/1000M (Gigabit Combo port), MSTR/HEAD, CPLR/TAIL, PoE

Serial Interface

• Console Port: USB-serial console (Type B connector)

Input/Output Interface

• Digital Input Channels: 1
• Digital Inputs: Max. input current: 8 mA +13 to +30 V for state 1 -30 to +3 V for state 0
• Alarm Contact Channels: 1 Relay output with current carrying capacity of 0.5 A @ 48 VDC
• Buttons: Reset button

DIP Switch Configuration

• Ethernet Interface: Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Input Voltage: 12/24/48 VDC Redundant dual inputs
• Operating Voltage: 12 to 57 VDC (> 50 VDC for PoE+ output recommended)
• Input Current: 4.08 A @ 48 VDC
• Max. PoE Power Output per Port: 60 W
• Connection: 2 removable 4-contact terminal block(s)
• Power Consumption (Max.): Max. 18.96 W full loading without PDs’ consumption
• Total PoE Power Budget: Max. 180 W for total PD's consumption @ 48 VDC input Max. 150 W for total PD's consumption @ 24 VDC input Max. 62 W for total PD's consumption @ 12 VDC input
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP40
• Dimensions: 49.1 x 135 x 116 mm (1.93 x 5.31 x 4.57 in)
• Weight: 910 g (2.00 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 61010-2-201 EN 61010-2-201
• EMC: EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
• Power Substation: IEEE 1613 IEC 61850-3 Edition 2.0
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Vibration: IEC 60068-2-6
• Bump: IEC 61850-3 Edition 2.0
• Freefall: IEC 60068-2-31
• Shock: IEC 60068-2-27

MTBF

• Time: 755,167 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity

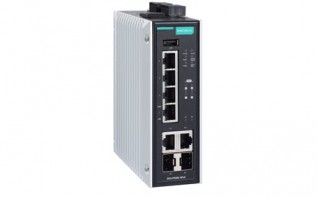

EDS-P506E-4PoE-2GTXSFP	Managed Ethernet switch with 4 PoE+/60W 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -10 to 60°C operating temperature
EDS-P506E-4PoE-2GTXSFP-T	Managed Ethernet switch with 4 PoE+/60W 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature
