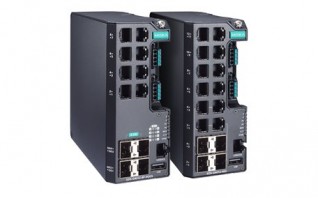

EDS-G4012 SERIES
Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports with 802.3bt PoE, 4 1000/2500BaseSFP ports, dual power supply 12/24/48 VDC, 48 VDC for PoE, -40 to 75°C operating temperature
Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Support for IEEE 802.3bt PoE for up to 90 W output per port
Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
Turbo Ring and Turbo Chain (recovery time
Wide range of power input options for flexible deployment
Compact and flexible housing design to fit into confined spaces
Supports MXstudio for easy, visualized industrial network management
Support for IEEE 802.3bt PoE for up to 90 W output per port
Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
Turbo Ring and Turbo Chain (recovery time
Wide range of power input options for flexible deployment
Compact and flexible housing design to fit into confined spaces
Supports MXstudio for easy, visualized industrial network management
Ethernet Interface
- PoE Ports (10/100/1000BaseT(X), RJ45 connector): 8
- 1000/2500BaseSFP Ports: 4
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3bz for 2.5GBaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication
Ethernet Software Features
- Filter: GMRP GVRP GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier
- Management: IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP RARP LLDP Port Mirroring (SPAN, RSPAN) Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON TFTP SFTP HTTP HTTPS Telnet Syslog Private MIB Fiber check
- MIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups 1, 2, 3, 9
- Redundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Dual-Homing MRP Link Aggregation MSTP
- Security: Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL SSH RADIUS TACACS+ Login and Password Policy Access control list DHCP Snooping
- Time Management: SNTP NTP Server/Client NTP Authentication IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
- Protocols: IPv4/IPv6 TCP/IP UDP ICMP ARP RARP TFTP DNS NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET IO Device
Switch Properties
- MAC Table Size: 16 K
- Jumbo Frame Size: 9.216 KB
- Max. No. of VLANs: 256
- VLAN ID Range: VID 1 to 4094
- IGMP Groups: 512
- Priority Queues: 4
- Packet Buffer Size: 1 MB
LED Interface
- LED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
- Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
- USB Connector: USB Type A (Reserved)
Input/Output Interface
- Alarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDC
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
- Buttons: Reset button
DIP Switch Configuration
- DIP Switches: Turbo Ring, Master, Coupler, Reserve
Power Parameters
- Connection: 2 removable 4-contact terminal block(s)
- Pre-installed Power Module: PWR-101-LV-BP-I
- Note: The EDS-G4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.For example:EDS-G4012-4GC-T + PWR-100–LV = EDS-G4012-4GC-LV-TEDS-G4012-4GC-T + PWR-105-HV-I = EDS-G4012-4GC-HV-TIf you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4012-4GC-LV-T with the PWR-105–HV-I, refer to the specifications of the EDS-G4012-4GC-HV-T.
- Input Voltage: 48 VDC Redundant dual inputs
- Operating Voltage: 44 to 57 VDC (>52 VDC for PoE+ output recommended)
- Input Current: 48 VDC, 5.42 A
- Power Consumption (Max.): Without PoE: 15.58 WWith PoE: Max. 240 W for total PD power consumption @ 48 VDC input
- Max. PoE Power Output per Port: 90 W
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- IP Rating: IP40
- Dimensions: 55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
- Weight: 972 g (2.14 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- Housing: Metal
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Industrial Cybersecurity: IEC 62443-4-1 IEC 62443-4-2
- Safety: UL 61010-2-201 EN 62368-1 (LVD)
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Maritime: DNV LR NK ABS
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Railway: EN 50121-4
- Traffic Control: NEMA TS2
- Power Substation: IEC 61850-3 IEEE 1613 Class 1
- Hazardous Locations: Class I Division 2, ATEX, IECEx
MTBF
- Time: 799,780 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
