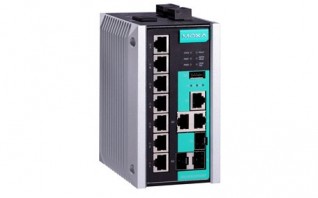

EDS-510E SERIES

Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, 3 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
eds-510e-series
3 Gigabit Ethernet ports for redundant ring or uplink solutions
Turbo Ring and Turbo Chain (recovery time Gigabit Ethernet recovery time RSTP/STP, and MSTP for network redundancy
RADIUS, TACACS+, SNMPv3, IEEE 802.1x, HTTPS, SSH, and sticky MAC address to enhance network security
Security features based on IEC 62443
EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery

Input/Output Interface

  • Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons: Reset button
  • Digital Input Channels: 1
  • Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 7 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 3
  • 10/100/1000BaseT(X) Ports (RJ45 connector): Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

  • Filter: 802.1Q VLAN BPDU Guard BPDU Filter GMRP GVRP IGMP v1/v2/v3 Port-based VLAN
  • Industrial Protocols: EtherNet/IP Modbus TCP PROFINET IO Device
  • Management: LLDP Back Pressure Flow Control BOOTP Port Mirror DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP RMON SCP SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
  • MIB: Ethernet-like MIB MIB-II Bridge MIB P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
  • Redundancy Protocols: Link Aggregation MRP MSTP RSTP STP Turbo Chain Turbo Ring v1/v2
  • Security: Broadcast storm protection HTTPS/SSL TACACS+ SNMPv3 Sticky MAC NTP authentication Port Lock RADIUS SSH SMTP with TLS
  • Time Management: NTP Server/Client SNTP

Switch Properties

  • IGMP Groups: 2048
  • MAC Table Size: 8 K
  • Max. No. of VLANs: 64
  • Packet Buffer Size: 1 Mbits
  • Priority Queues: 4
  • VLAN ID Range: VID 1 to 4094

USB Interface

  • Storage Port: USB Type A

LED Interface

  • LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL

Serial Interface

  • Console Port: USB-serial console (Type B connector)

DIP Switch Configuration

  • DIP Switches: Turbo Ring, Master, Coupler, Reserve

Power Parameters

  • Connection: 2 removable 4-contact terminal block(s)
  • Input Current: 0.68 A @ 24 VDC
  • Input Voltage: 12/24/48/-48 VDC Redundant dual inputs
  • Operating Voltage: 9.6 to 60 VDC
  • Overload Current Protection: Supported
  • Reverse Polarity Protection: Supported

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 79.2 x 135 x 116 mm (3.12 x 5.31 x 4.57 in)
  • Weight: 1263 g (2.78 lb)
  • Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: UL 508
  • EMC: EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Hazardous Locations: ATEX Class I Division 2
  • Maritime: LR ABS NK DNV
  • Power Substation: IEC 61850-3 IEEE 1613
  • Railway: EN 50121-4
  • Traffic Control: NEMA TS2
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 725,532 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
EDS-510E-3GTXSFP Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, 3 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature
EDS-510E-3GTXSFP-T Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, 3 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature
