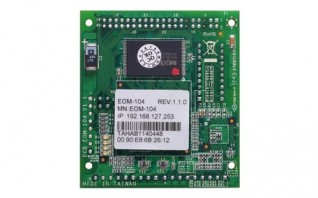

EOM-104 SERIES
Embedded managed Ethernet switch module with 4 10/100BaseT(X) ports, -40 to 75°C operating temperature
10/100BaseT(X) and 100BaseFX Ethernet interfaces
Turbo Ring and RSTP/STP for network redundancy
SNMP and email alerts for event trapping and notifications
Two-thirds the size of a business card
Low power consumption
-40 to 75°C operating temperature range
Turbo Ring and RSTP/STP for network redundancy
SNMP and email alerts for event trapping and notifications
Two-thirds the size of a business card
Low power consumption
-40 to 75°C operating temperature range
Ethernet Interface
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of Service IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol
- 10/100BaseT(X) Port: 4
- Connector: 1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins
- GPIO: 4 x Programmable I/O pins
Ethernet Software Features
- Protocols: BOOTP, DHCP Client, HTTP, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
- MIB: Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Switch Properties
- MAC Table Size: 1 K
- Packet Buffer Size: 512 kbits
Serial Interface
- Console Port: RS-232 (TxD, RxD, DTR, DSR)
Power Parameters
- Input Current: 0.48 A @ 3.3 VDC
Physical Characteristics
- Dimensions: 54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)
- Weight: 21 g (0.046 lb)
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
