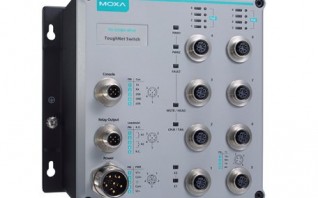

TN-5500A SERIES

8 10/100BaseT(X) with 802.3at PoE+ ports with M12 connector, power input 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
tn-5500a-series
Up to 2 Gigabit ports with optional bypass relay function
8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
Isolated power with 24 to 110 VDC power supply range
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
-40 to 75°C operating temperature range
Turbo Ring and Turbo Chain (recovery time

Input/Output Interface

  • Alarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 8
  • Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3af/at for PoE/PoE+ output

Ethernet Software Features

  • Broadcast Forwarding: Broadcast forwarding
  • Configuration Options: Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
  • Filter: 802.1Q GMRP GVRP IGMP Snooping v1/v2/v3 IGMP Querier Port-based VLAN Static Multicast
  • Industrial Protocols: EtherNet/IP Adapter, Modbus TCP Server (Slave)
  • Management: Account Management Back Pressure Flow Control DHCP Client (options 1/3/50/51/53/54/55/57/66/67) DHCP option 82 (relay agent) DHCP Server (options 1/3/12/15/42/50/55) Flow control HTTP ICMP IPv4/IPv6 LLDP Loop Protection Port-based DHCP Server Port Mirror QoS/CoS/ToS RARP RMON SMTP SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Telnet
  • MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
  • Redundancy Protocols: LACP MSTP RSTP Static Port Trunk STP Turbo Chain Turbo Ring v2 Turbo Ring with DRC
  • Security: Broadcast storm protection HTTPS/SSL Local Account Accessibility TACACS+ Port Lock RADIUS Rate Limit SSH
  • Time Management: NTP Server/Client SNTP

Switch Properties

  • IGMP Groups: 256
  • Max. No. of VLANs: 64
  • VLAN ID Range: VID 1 to 4094

LED Interface

  • LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE

Serial Interface

  • Console Port: M12 A-coded male connector

Power Parameters

  • Input Current: 24-110 VDC, 6.8A max.
  • Input Voltage: Redundant dual inputs 24/36/48/72/96/110 VDC
  • No. of Power Inputs: 2
  • Operating Voltage: 16.8 to 137.5 VDC
  • Overload Current Protection: Supported
  • Power Connector: M23 connector
  • Reverse Polarity Protection: Supported
  • Total PoE Power Budget: 120W

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP54
  • Dimensions: 185 x 176.2 x 117.2 mm (7.28 x 6.9 x 4.61 in)
  • Weight: 2,383 g (5.25 lb)
  • Installation: DIN-rail mounting (optional) Wall mounting
  • Protection: PCB conformal coating

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Altitude: 2000 m

Standards and Certifications

  • EMC: EN 55032/35
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Freefall: IEC 60068-2-31
  • Radio Frequency: FCC
  • Railway: EN 50121-4 EN 50155
  • Railway Fire Protection: EN 45545-2
  • Safety: EN 62368-1
  • Shock: IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration: IEC 60068-2-64, IEC 61373, EN 50155

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 450,556 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
TN-5510A-8PoE-2GLSX-ODC-WV-CT-T 8 10/100BaseT(X) with 802.3at PoE+ ports with M12 connector and 2 GE fiber ports, power input 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5510A-8PoE-2GTX-WV-CT-T 8 10/100BaseT(X) with 802.3at PoE+ and 2 GE ports with M12 connector, power input 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5510A-8PoE-2GTXBP-WV-CT-T 8 10/100BaseT(X) with 802.3at PoE+ and 2 GE ports with M12 connector with bypass function, power input 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5516A-WV-CT-T Layer 2 managed switch with 16 10/100BaseT(X) ports with M12 connector, dual power input, 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5508A-8PoE-WV-T 8 10/100BaseT(X) with 802.3at PoE+ ports with M12 connector, power input 24 to 110 VDC, -40 to 75°C operating temperature
TN-5516A-8PoE-WV-CT-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) ports and 8 802.3at PoE+ M12 connectors, 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5508A-8PoE-WV-CT-T 8 10/100BaseT(X) with 802.3at PoE+ ports with M12 connector, power input 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5510A-2GTX-WV-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000BaseT(X) ports with M12 connector, 24 to 110 VDC dual power input, -40 to 75°C operating temperature
TN-5508A-WV-CT-T Managed Ethernet switch with 8 10/100BaseT(X) ports with M12 connector, dual redundant power inputs (24-110 VDC), -40 to 75°C operating temperature, conformal coating
TN-5510A-2GLSX-ODC-WV-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 1000 BaseLSX Q-ODC® ports, 24-110 VDC dual power input, -40 to 75°C operating temperature
TN-5510A-2GTXBP-WV-CT-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000BaseT(X) ports with M12 connector with bypass relay function, 24 to 110 VDC dual power input, -40 to 75°C operating temperature, conformal coating
TN-5516A-WV-T Layer 2 managed switch with 16 10/100BaseT(X) ports with M12 connector, dual power input, 24 to 110 VDC, -40 to 75°C operating temperature
TN-5510A-8PoE-2GLSX-ODC-WV-T 8 10/100BaseT(X) with 802.3at PoE+ ports with M12 connector and 2 GE fiber ports, power input 24 to 110 VDC, -40 to 75°C operating temperature
TN-5510A-8PoE-2GTXBP-WV-T 8 10/100BaseT(X) with 802.3at PoE+ and 2 GE ports with M12 connector with bypass function, power input 24 to 110 VDC, -40 to 75°C operating temperature
TN-5516A-8PoE-WV-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) ports and 8 802.3at PoE+ M12 connectors, 24-110 VDC, -40 to 75°C operating temperature
TN-5508A-WV-T Managed Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75°C operating temperature
TN-5510A-2GTXBP-WV-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000BaseT(X) ports with M12 connector with bypass relay function, 24 to 110 VDC dual power input, -40 to 75°C operating temperature
TN-5510A-2GTX-WV-CT-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000BaseT(X) ports with M12 connector, 24 to 110 VDC dual power input, -40 to 75°C operating temperature, conformal coating
TN-5510A-2GLSX-ODC-WV-CT-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 1000 BaseLSX Q-ODC® ports, 24 to 110 VDC dual power input, -40 to 75°C operating temperature, conformal coating
TN-5510A-8PoE-2GTX-WV-T 8 10/100BaseT(X) with 802.3at PoE+ and 2 GE ports with M12 connector, power input 24 to 110 VDC, -40 to 75°C operating temperature
TN-5518A-2GTXBP-WV-T Layer 2 managed switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports with M12 connectors, 2 Gigabit Ethernet ports with bypass relay function, dual power input, 24 to 110 VDC, -40 to 75°C operating temperature
TN-5518A-2GTX-WV-T Layer 2 managed switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports with M12 connectors, dual power input, 24-110 VDC, -40 to 75°C operating temperature
TN-5518A-8PoE-2GTXBP-WV-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) ports and 8 802.3at PoE+ M12 connectors, 2 10/100/1000BaseT(X) M12 connectors with bypass function, 24 to 110 VDC, -40 to 75°C operating temperature
TN-5518A-8PoE-2GTX-WV-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) ports and 8 802.3at PoE+ M12 connectors, 2 10/100/1000BaseT(X) with M12 connectors, 24 to 110 VDC, -40 to 75°C operating temperature
TN-5518A-2GTXBP-WV-CT-T Layer 2 managed switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports with M12 connectors, 2 Gigabit Ethernet ports with bypass relay function, dual power input, 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5518A-8PoE-2GTXBP-WV-CT-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) ports and 8 802.3at PoE+ M12 connectors, 2 10/100/1000BaseT(X) M12 connectors with bypass function, 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5518A-2GTX-WV-CT-T Layer 2 managed switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports with M12 connectors, dual power input, 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
TN-5518A-8PoE-2GTX-WV-CT-T Layer 2 managed Ethernet switch with 8 10/100BaseT(X) ports and 8 802.3at PoE+ M12 connectors, 2 10/100/1000BaseT(X) M12 connectors, 24 to 110 VDC, -40 to 75°C operating temperature, conformal coating
