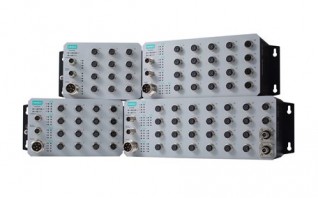

TN-4500A SERIES
Layer 2 managed Ethernet switch with 12 PoE 10/100BaseT(X) ports with M12 connector, 4 PoE 10/100/1000BaseT(X) ports with M12 connector, 1 (dual input) 24 to 110 VDC power supply, -40 to 75°C operating temperature, conformal coating
2 to 4 Gigabit ports with bypass relay function on the bypass models
2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface on fiber models
Up to 4 Gigabit ports with PoE function
Up to 20 IEEE 802.3at/af compliant combo PoE and Ethernet ports
Supports regular and push-pull M12 connectors
Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Isolated power with 24 to 110 VDC power supply range
-40 to 70°C system operating temperature range
2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface on fiber models
Up to 4 Gigabit ports with PoE function
Up to 20 IEEE 802.3at/af compliant combo PoE and Ethernet ports
Supports regular and push-pull M12 connectors
Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Isolated power with 24 to 110 VDC power supply range
-40 to 70°C system operating temperature range
Input/Output Interface
- Alarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 12
- PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 4
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
- PoE Ports (10/100/1000BaseT(X), M12 A-coded 8-pin female connector): 4
Ethernet Software Features
- Broadcast Forwarding: Broadcast forwarding
- Configuration Options: Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility
- Filter: 802.1Q VLAN GMRP GVRP IGMP Snooping v1/v2/v3 IGMP Querier Port-based VLAN Static Multicast
- Industrial Protocols: EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave)
- Management: Back Pressure Flow Control Flow control DHCP Client (options 1/3/50/51/53/54/55/57/66/67) DHCP Server (options 1/3/12/15/42/50/55) DHCP option 82 (relay agent) Port-based DHCP Server HTTP IPv4/IPv6 LLDP Port Mirror QoS/CoS/ToS RARP RMON SMTP SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Telnet Account Management DNS Server Loop Protection
- MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: LACP Static Port Trunk MSTP RSTP STP Turbo Chain Turbo Ring v2 Turbo Ring with DRC
- Security: Access control list Trust access control Broadcast storm protection TACACS+ RADIUS HTTPS/SSL SSH Rate Limit
- Time Management: NTP Server/Client SNTP Server/Client
Switch Properties
- IGMP Groups: 256
- Max. No. of VLANs: 64
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.712 KB
LED Interface
- LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports
Serial Interface
- Console Port: M12 A-coded male connector
Power Parameters
- Input Current: 7.0 A @ 24 VDC
- Input Voltage: 24/36/48/72/96/110 VDC
- No. of Power Inputs: 2
- Operating Voltage: 16.8 to 137.5 VDC
- Overload Current Protection: Supported
- Power Connector: M23 connector M12 K-coded connector (optional)
- Reverse Polarity Protection: Supported
- Total PoE Power Budget: 120 W
Physical Characteristics
- Housing: Metal
- IP Rating: IP42
- Dimensions: TN-4516A Models: 229.6 x 132 x 122.3 mm (9.04 x 5.20 x 4.81 in)TN-4524A/4528A Models: 347.8 x 132 x 122.3 mm (13.70 x 5.20 x 4.81 in)
- Weight: 2.090 g (4.61 lb)
- Installation: Wall mounting
- Protection: PCB conformal coating
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 3000 m
Standards and Certifications
- EMC: EN 55032/35
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Radio Frequency: FCC
- Railway: EN 50121-4 EN 50155 IEC 60571
- Railway Fire Protection: EN 45545-2
- Safety: UL 62368-1 IEC 62368-1 EN 62368-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Standards: Telcordia SR332
- Time: TN-4516A-4GTX Models: 701,644 hrsTN-4516A-4GTXBP Models: 676,157 hrsTN-4516A-12PoE-4GPoE Models: 459,971 hrsTN-4516A-12PoE-2GPoE-2GTXBP Models: 427,322 hrsTN-4516A-12PoE-2GPoE-2GODC Models: 421,432 hrsTN-4524A-16PoE Models: 429,402 hrsTN-4528A-16PoE-4GPoE Models: 393,894 hrsTN-4528A-16PoE-2GPoE-2GTXBP Models: 392,746 hrsTN-4528A-16PoE-2GPoE-2GODC Models: 387,767 hrs
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
