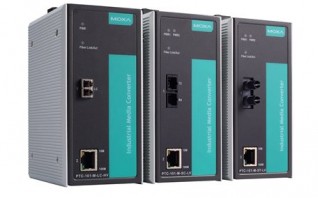

PTC-101 SERIES
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature
10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
Link Fault Pass-Through (LFPT)
Power failure alarm by relay output (LV model only)
-40 to 85°C operating temperature range
Redundant dual DC power inputs (LV model only)
Integrated high-reliability power supply eliminates the need for external power transformer
Link Fault Pass-Through (LFPT)
Power failure alarm by relay output (LV model only)
-40 to 85°C operating temperature range
Redundant dual DC power inputs (LV model only)
Integrated high-reliability power supply eliminates the need for external power transformer
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- 100BaseFX Ports (multi-mode LC connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Optical Fiber: a. 50/125 µm, 800 MHz x km fiber optic cableb. 62.5/125 µm, 500 MHz x km fiber optic cablec. 9/125 µm single-mode fiber optic cabled. 9/125 µm single-mode fiber optic cable (80 km)
- Optical Fiber: 100BaseFX
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Wavelength
- Optical Fiber: 1300 nm
- Optical Fiber: 1310 nm
- Optical Fiber: Max. TX
- Optical Fiber: -10 dBm
- Optical Fiber: 0 dBm
- Optical Fiber: Min. TX
- Optical Fiber: -20 dBm
- Optical Fiber: -5 dBm
- Optical Fiber: RX Sensitivity
- Optical Fiber: -32 dBm
- Optical Fiber: -34 dBm
- Optical Fiber: Link Budget
- Optical Fiber: 12 dB
- Optical Fiber: 29 dB
- Optical Fiber: Typical Distance
- Optical Fiber: 5 kma
- Optical Fiber: 4 kmb
- Optical Fiber: 40 kmc
- Optical Fiber: Saturation
- Optical Fiber: -6 dBm
- Optical Fiber: -3 dBm
- Optical Fiber: a. 50/125 µm, 800 MHz x km fiber optic cableb. 62.5/125 µm, 500 MHz x km fiber optic cablec. 9/125 µm single-mode fiber optic cable
Power Parameters
- Input Voltage: 100 to 240 VAC 100 to 240 VDC
- Input Current: 350 to 200 mA @ 100 to 240 VAC 350 to 200 mA @ 100 to 240 VDC
- Overload Current Protection: Supported
- Power Consumption: 350 to 200 mA @ 100 to 240 VAC 350 to 200 mA @ 100 to 240 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
- Weight: Product With Package: 952 g (2.09 lb) Product Only: 785 g (1.73 lb)
- Installation: DIN-rail mounting
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-3
- Safety: EN 62368-1 UL 62368-1 UL 60950-1
- Vibration: IEC 60068-2-6
- Power Substation: IEC 61850-3
- Railway: EN 50155, EN 50121-4
MTBF
- Time: 4,660,534 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
