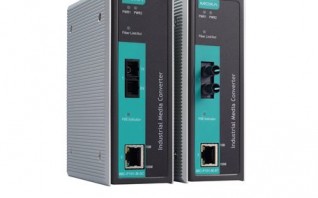

IMC-P101 SERIES
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with SC connector, 0 to 60°C operating temperature
10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
IEEE 802.3af and PoE standard compliance
IEEE 802.3at and PoE+ standard compliance (HW Rev. 1.1.0 and later HW Rev, 1.1.0 complies with 802.23at (PoE Plus) and Rev. 1.0.1 802.23af (PoE) )
Power failure alarm by relay output
Supports store-and-forward mode and pass-through mode
-40 to 75°C operating temperature range (-T model)
Redundant dual DC power inputs
IEEE 802.3af and PoE standard compliance
IEEE 802.3at and PoE+ standard compliance (HW Rev. 1.1.0 and later HW Rev, 1.1.0 complies with 802.23at (PoE Plus) and Rev. 1.0.1 802.23af (PoE) )
Power failure alarm by relay output
Supports store-and-forward mode and pass-through mode
-40 to 75°C operating temperature range (-T model)
Redundant dual DC power inputs
Ethernet Interface
- 100BaseFX Ports (multi-mode SC connector): 1
- Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Optical Fiber: Low-Speed Fiber Module
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Fiber Cable Requirements
- Optical Fiber: 50/125 µm, 800 MHz
- Optical Fiber: G.652
- Optical Fiber: 62.5/125 µm, 500 MHz
- Optical Fiber: Typical Distance
- Optical Fiber: 5 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 850
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 840 to 860
- Optical Fiber: 1290 to 1330
- Optical Fiber: RX Range (nm)
- Optical Fiber: 800 to 900
- Optical Fiber: 1100 to 1650
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: 0 to -8
- Optical Fiber: 0 to -8
- Optical Fiber: RX Range (dBm)
- Optical Fiber: 0 to -25
- Optical Fiber: 0 to -25
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 15
- Optical Fiber: 20
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 1
- Optical Fiber: 1
- Optical Fiber: Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.
- Magnetic Isolation Protection: 1.5 kV (built-in)
- PoE Ports (10/100BaseT(X), RJ45 connector): 1
Power Parameters
- Input Current: 360 mA @ 12 to 57 VDC (HW Rev. 1.1.0 and later) 430 mA @ 46 to 57 VAC (HW Rev. 1.0.1 and prior)
- Input Voltage: 12 to 57 VDC (HW Rev. 1.1.0 and later) 46 to 57 VDC (HW Rev. 1.0.1 and prior)
- Overload Current Protection: Supported
- Power Consumption: 430 mA @ 46 to 57 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 144.5 x 122.3 x 51.65 mm (5.69 x 4.81 x 2.03 in)
- Weight: Product only: 532 g (1.17 lb) Packaged: 701 g (1.55 lb)
- Installation: DIN-rail mounting
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 KHz to 80 MHz: 3 to 1 V IEC 61000-4-8 PFMF
- Environmental Testing: IEC 60068-2-2 IEC 60068-2-3
- Safety: UL 508 EN 62368-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 2,892,595 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
