IMC-21A SERIES

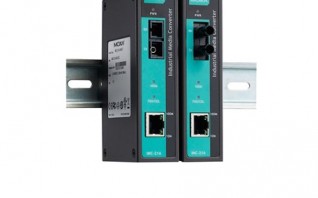

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode, SC fiber connector, -10 to 60°C operating temperature
Multi-mode or single-mode, with SC or ST fiber connector
Link Fault Pass-Through (LFPT)
-40 to 75°C operating temperature range (-T models)
DIP switches to select FDX/HDX/10/100/Auto/Force
Link Fault Pass-Through (LFPT)
-40 to 75°C operating temperature range (-T models)
DIP switches to select FDX/HDX/10/100/Auto/Force
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- 100BaseFX Ports (multi-mode SC connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Optical Fiber: 100BaseFX
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Fiber Cable Type
- Optical Fiber: OM1
- Optical Fiber: 50/125 µm
- Optical Fiber: G.652
- Optical Fiber: 800 MHz x km
- Optical Fiber: Typical Distance
- Optical Fiber: 4 km
- Optical Fiber: 5 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 1300
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 1260 to 1360
- Optical Fiber: 1280 to 1340
- Optical Fiber: RX Range (nm)
- Optical Fiber: 1100 to 1600
- Optical Fiber: 1100 to 1600
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: -10 to -20
- Optical Fiber: 0 to -5
- Optical Fiber: RX Range (dBm)
- Optical Fiber: -3 to -32
- Optical Fiber: -3 to -34
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 12
- Optical Fiber: 29
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 3
- Optical Fiber: 1
- Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Power Parameters
- Input Current: 12 to 48 VDC, 265 mA (Max.)
- Input Voltage: 12 to 48 VDC
- Overload Current Protection: Supported
- Power Connector: Terminal block
- Power Consumption: 265 mA @ 12 to 48 VDC
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)
- Weight: 170 g (0.37 lb)
- Installation: DIN-rail mounting
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
- Safety: EN 60950-1 UL 60950-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 353,000 hrs
- Standards: MIL-HDBK-217F
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
