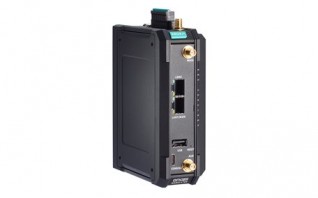

ONCELL G4302-LTE4 SERIES
Industrial LTE Cat. 4 cellular secure router, B1/B3/B7/B8/B20/B28, 2 10/100/1000BaseT(X) RJ45 ports, -10 to 55°C operating temperature
Integrated LTE Cat. 4 module with US/EU/APAC band support
Power management support for wake-up time scheduling
Cellular link redundancy with dual-SIM GuaranLink support
Supports WAN redundancy between cellular and Ethernet
Precise GNSS for location-based applications
Rugged and compact design for harsh environments
Compact size and smart LED design for easier installation and troubleshooting
Developed according to IEC 62443-4-2 with Secure Boot
Visualize OT security with the MXsecurity management software
Power management support for wake-up time scheduling
Cellular link redundancy with dual-SIM GuaranLink support
Supports WAN redundancy between cellular and Ethernet
Precise GNSS for location-based applications
Rugged and compact design for harsh environments
Compact size and smart LED design for easier installation and troubleshooting
Developed according to IEC 62443-4-2 with Secure Boot
Visualize OT security with the MXsecurity management software
Cellular Interface
- Cellular Standards: LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
- LTE Data Rate: 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL
- Band Options (EU): LTE B1 (2100 MHz) / B3 (1800 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B20 (800 MHz) / B28 (700 MHz)UMTS/HSPA B1 (2100 MHz) / B8 (900 MHz)GSM/GPRS/EDGE 900 MHz / 1800 MHz
- No. of SIMs: 2 Push-eject tray type
- SIM Format: Nano SIM
- Cellular Antenna Connectors: 2 SMA female
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 2
GNSS Interface
- GNSS Bands: GPS (1575.42 MHz)GLONASS (1597.52 MHz)Galileo (1575.42 MHz)BeiDou (1561.098 MHz)
- GNSS Antenna Connectors: 1 SMA female
Input/Output Interface
- Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
- Analog Input Channels: 1
- Digital Inputs: -30 to +3 V for state 0 +13 to +30 V for state 1
- Buttons: Reset button
- Digital Output Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
- Digital Input Channels: 1
USB Interface
- No. of USB Ports: 1
- USB Connector: USB Type A
- USB Standards: USB 2.0
Serial Interface
- No. of Ports: 1
- Connector: DB9 male
- Serial Standards: RS-232/422/485
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None Even Odd
- Baudrate: 300 bps to 921.6 kbps
- Console Port: We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
- Console Port: We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Operation Modes
- Standards: Real COM mode RFC2217 mode TCP Client mode TCP Server mode UDP mode
LED Interface
- LED Indicators: PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN
Ethernet Software Features
- Management: Available in Q2, 2024.
- Management: Available in Q1, 2024.
- Broadcast Forwarding: IP directed broadcast, broadcast forwarding
- Configuration Options: Web Console (HTTP/HTTPS) Command Line Interface (CLI) through Serial/Telnet/SSH
- Configuration Options: We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
- Configuration Options: Web Console (HTTP/HTTPS) Command Line Interface (CLI) through Serial/Telnet/SSH
- Network Protocols: DDNS DHCP Server/Client SMTP SNMPv1/v2c/v3 ARP Telnet TCP/IP UDP Remote SMS Control
- Filter: 802.1Q VLAN Port-based VLAN
- Unicast Routing: Static Route
- Multicast Routing: Static Route
- Routing Redundancy: VRRP
- Time Management: NTP Server/Client SNTP
Security Functions
- Hardware-based Security: Secure Boot
- Password: User-level password protection
- Authentication: Local database RADIUS Access Control List
Firewall
- Filter: DDoS Ethernet protocols ICMP IP address MAC address Ports
NAT
- Features: 1-to-1 N-to-1 PAT NAT loopback Double NAT
IPsec VPN
- Authentication: MD5 and SHA (SHA-256) RSA (key size: 1024-bit, 2048-bit) Pre-shared Key or X.509 v3 certificate
- Encryption: DES 3DES AES-128 AES-192 AES-256
- Concurrent VPN Tunnels: Max. 15 IPsec VPN tunnels
- Protocols: IPsec
Power Parameters
- Input Current: 0.96 A @ 12 VDC (max.) 0.63 A @ 12 VDC (average)0.33 A @ 24 VDC (average)0.18 A @ 48 VDC (average)
- Input Voltage: 12 to 48 VDC
- Power Consumption: 7.6 W (typ.)11.52 W (max.)
- Power Connector: Screw-locked terminal block
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- Housing: With the rubber SIM slot cover closed.
- Dimensions: 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)
- Weight: 610 g (1.34 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- IP Rating: IP40
- IP Rating: With the rubber SIM slot cover closed.
Environmental Limits
- Operating Temperature: -10 to 55°C (14 to 131°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 22, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz IEC 61000-4-8: 30 A/m
- Freefall: IEC 60068-2-32
- Hazardous Locations: Available in Q2, 2024.
- Hazardous Locations: Available in Q2, 2024.
- Hazardous Locations: IECEx
- Hazardous Locations: Available in Q2, 2024.
- Hazardous Locations: ATEX
- Hazardous Locations: Available in Q2, 2024.
- Hazardous Locations: Class I Division 2
- Hazardous Locations: Available in Q2, 2024.
- Railway: EN 50121-4
- Traffic Control: NEMA TS2
- Traffic Control: Available in Q4, 2023.
- Road Vehicles: Available in Q1, 2024.
- Road Vehicles: Available in Q4, 2023.
- Radio Frequency: FCC PTCRB EN 303 413
- Radio: NCC TELEC RCM KC ICID UKCA Anatel
- Radio: Available in Q4, 2023.
- Carrier Approvals: Verizon AT&T
- Carrier Approvals: Available in Q4, 2023.
- Carrier Approvals: AT&T
- Cellular Standards: EN 301 489-1/-19 EN 301 489-1/-52 EN 301511 EN 301908-1/-2/-13
- Safety: UL 62368-1 EN 62368-1
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: 518,722 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
