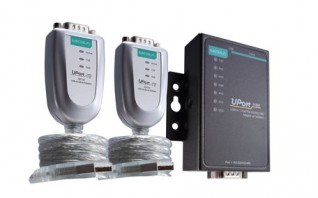

UPORT 1100 SERIES

1-port RS-232 USB-to-serial converter
uport-1100-series
921.6 kbps maximum baudrate for fast data transmission
Drivers provided for Windows, macOS, Linux, and WinCE
Virtual machine supported for VMWare Fusion/ESXi and Parallels
Mini-DB9-female-to-terminal-block adapter for easy wiring
LEDs for indicating USB and TxD/RxD activity
2 kV isolation protection (for “-I” models)

USB Interface

  • Speed: 12 Mbps
  • USB Connector: USB Type A
  • USB Standards: USB 2.0 compatible, USB 1.0/1.1 compliant

Serial Interface

  • No. of Ports: 1
  • Connector: DB9 male
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: None RTS/CTS XON/XOFF
  • Serial Standards: RS-232
  • Isolation: UPort 1130I/1150I: 2kV

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Power Parameters

  • Input Voltage: 5 VDC
  • Input Current: 30 mA

Physical Characteristics

  • Housing: ABS + Polycarbonate
  • Dimensions: 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
  • Weight: 200 g (0.44 lb)

Environmental Limits

  • Operating Temperature: 0 to 55°C (32 to 131°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Storage Temperature (package included): -20 to 70°C (-4 to 158°F)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class 1
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/mIEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kVIEC 61000-4-5 Surge: Power: 2 kVIEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/mIEC 61000-4-8 PFMF

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 1,949,025 hrs
  • Standards: MIL-HDBK-217F Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Serial Software Features

  • Windows Drivers: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
  • Virtual Machine: VMware Fusion (Windows on macOS 10.12 to 10.15) VMWare ESXi (Windows 7 to 10, Windows Server 2008 R2 to 2019) VMWare ESXi (Linux kernel 5 and 4) Parallels Desktop (Windows on macOS 10.12 to 10.15)
  • Linux Drivers: Kernel 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Mac Drivers: macOS 10.12 to 10.15
  • Android API: Android 3.1.x and later
  • Arm®-based Platform Support: Linux kernel 6.x, 5.x, and 4.x Windows 11

Available Models

Model No. Description Quantity
UPort 1130 1-port RS-422/485 USB-to-serial converter
UPort 1150 1-port RS-232/422/485 USB-to-serial converter
UPort 1110 1-port RS-232 USB-to-serial converter
UPort 1150I 1-port RS-232/422/485 USB-to-serial converter with optical isolation protection
UPort 1130I 1-port RS-422/485 USB-to-serial converter with 2 kV optical isolation
