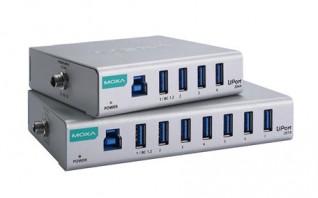

UPORT 200A SERIES
4-port general-purpose USB 3.2 hubs
USB-IF certification
USB 3.2 SuperSpeed capability
IP30 aluminum housing
DIN-rail housing and wall-mountable housing
5-year warranty
USB 3.2 SuperSpeed capability
IP30 aluminum housing
DIN-rail housing and wall-mountable housing
5-year warranty
USB Interface
- USB Standards: USB 1.1/2.0 compliant USB 3.2 Gen 1
- Speed: 5 Gbps
- USB Connector: UFP: type BDFP: type A
- No. of USB Ports: 5 (UFP: 1, DFP 4)
Power Parameters
- Input Voltage: No. of power inputs: 1, 12 VDC
- Power Connector: Power jack
- Power Consumption: 2.65 A @ 12 VDC
- Reverse Polarity Protection: Supported
- Output Power Rating: Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible) Rest of ports: 900 mA @ 5 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
- Weight: 208 g (0.46 lb)
- Installation: DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF
- Safety: EN 62368-1, UL 62368-1, KC
- Environmental Testing: IEC 60068-2-1
- Freefall: IEC 60068-2-34
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Standards: Telcordia (Bellcore), GB
- Time: 2,678,801 hrs
