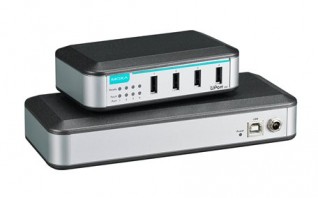

UPORT 204/207 SERIES
4-port entry-level USB hub, adaptor included
Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
USB-IF certification
15 kV ESD Level 4 protection for all USB ports
Comprehensive diagnostic LEDs
Full 500 mA of power per port
Chooses bus power or external power
USB-IF certification
15 kV ESD Level 4 protection for all USB ports
Comprehensive diagnostic LEDs
Full 500 mA of power per port
Chooses bus power or external power
USB Interface
- Speed: 12 Mbps, 480 Mbps
- USB Connector: USB Type B
- USB Standards: USB 1.1/2.0 compliant
- No. of USB Ports: 4
Power Parameters
- Input Voltage: 12 to 40 VDC
- Input Current: 1.21 A @ 12 VDC
Physical Characteristics
- Housing: Polycarbonate (PC)
- Dimensions: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
- Weight: Packaged: 805 g (1.77 lb) Product only: 800 g (1.76 lb)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m IEC 61000-4-8 PFMF
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
- Freefall: IEC 60068-2-34
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 1,577,573 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
