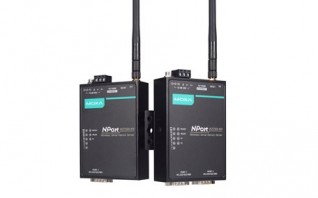

NPORT W2150A-W4/W2250A-W4 SERIES
1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN CN band, CN plug, 12 to 48 VDC, 0 to 55°C operating temperature
Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
Web-based configuration using built-in Ethernet or WLAN
Secure Boot that only allows Moxa-authorized firmware to run on devices
Remote configuration with HTTPS (TLS 1.3), SSH
Secure data access with WEP, WPA, WPA2
WPA/WPA2 Enterprise IEEE 802.1X/RADIUS (EAP-TLS 1.3)
Fast roaming for quick automatic switching between access points
Offline port buffering and serial data log
Enhanced surge protection for serial, LAN, and power
Dual power inputs (1 screw-type power jack, 1 terminal block)
Web-based configuration using built-in Ethernet or WLAN
Secure Boot that only allows Moxa-authorized firmware to run on devices
Remote configuration with HTTPS (TLS 1.3), SSH
Secure data access with WEP, WPA, WPA2
WPA/WPA2 Enterprise IEEE 802.1X/RADIUS (EAP-TLS 1.3)
Fast roaming for quick automatic switching between access points
Offline port buffering and serial data log
Enhanced surge protection for serial, LAN, and power
Dual power inputs (1 screw-type power jack, 1 terminal block)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
- Configuration Options: Web Console (HTTP/HTTPS) Windows Utility
- Management: DHCP Option 82 HTTP IPv4 SMTP SNMPv1/v2c/v3 Syslog Telnet Web Console
- Windows Real COM Drivers: Windows 11/10/8.1/8/7/Vista/XP/ME/98/95Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NTWindows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
- Fixed TTY Drivers: macOS Versions: 10.12 to 10.15, 11.x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Android API: Android 3.1.x and later
- MIB: Device Settings MIB RFC1213, RFC1317
- Security: HTTPS/SSL User Authentication Management: local database, RADIUS Secure Protocols: HTTPS (TLSv1.3), SSH, SNMPv3 Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
- Time Management: NTP Client SNTP Client
- Arm®-based Platform Support: Linux kernel 5.x/4.x
- Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 10.12 to 11.x)Parallels Desktop (Windows on macOS 10.12 to 11.x)
WLAN Interface
- WLAN Standards: 802.11a/b/g/n
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -91 @ 6 Mbps Typ. -74 @ 54 Mbps
- Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -92 dBm @ 1 Mbps Typ. -84 dBm @ 11 Mbps
- Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -91 dBm @ 6 Mbps Typ. -73 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz)
- Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz) Typ. -85 dBm @ 13.5 Mbps (40 MHz) Typ. -67 dBm @ 150 Mbps (40 MHz)
- Modulation Type: DSSS OFDM
- Transmission Distance: Up to 100 meters (in open areas)
- Transmission Rate: 802.11a/g: 54 Mbps 802.11b: 11 Mbps 802.11n: 6.5 to 150 Mbps
- Transmitter Power for 802.11b: 16±1.5 dBm @ 1 Mbps 16±1.5 dBm @ 11 Mbps
- Transmitter Power for 802.11g: 16±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11a: 15±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11n (2.4 GHz): 16 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (72.2 MHz)
- Transmitter Power for 802.11n (5 GHz): 15 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (150 MHz)
- Frequency Band for CN (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
- Frequency Band for CN (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for CN (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
- Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
- Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for JP (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
- Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for US (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
- Frequency Band for US (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for US (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
- Frequency Band for US (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Frequency Band for US (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
- Wireless Security: WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
- WLAN Modes: Infrastructure mode
Antenna Characteristics
- Connector: RP-SMA (male)
- Antenna Type: Omni-directional
Security Functions
- Authentication: Local database RADIUS
- Encryption: AES-128 AES-256 HMAC RSA-1024 SHA-1 SHA-256 SHA-384
- Security Protocols: SNMPv3 SSHv2 HTTPS (TLS 1.3)
- Wireless Security: WEP WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS support EAP-TLS 1.3) WPA/WPA2-Personal
- Hardware-based Security: Secure Boot
Serial Interface
- Connector: DB9 male
- No. of Ports: 1
- Serial Standards: RS-232 RS-422 RS-485
- Operation Modes: Real COM mode TCP Server mode TCP Client mode UDP mode RFC2217 mode Pair Connection mode Ethernet Modem mode Disabled
- Baudrate: 300 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None RTS/CTS XON/XOFF
- RS-485 Data Direction Control: ADDC® (automatic data direction control)
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- Surge: 1 kV
Physical Characteristics
- Housing: Metal
- Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting
- Dimensions (with ears, without antenna): 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
- Dimensions (without ears or antenna): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
- Weight: 185 g (0.41 lb)
- Antenna Length: 108 mm (4.25 in)
Environmental Limits
- Operating Temperature: Standard Models: 0 to 55°C (32 to 131°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Parameters
- Input Current: 429 mA @ 12 VDC
- Input Voltage: 12 to 48 VDC
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Radio Frequency: CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC
- Safety: UL 62368-1 IEC 62368-1
Reliability
- Alert Tools: RTC (real-time clock)
- Automatic Reboot Trigger: Built-in WDT
MTBF
- Time: 1,356,464 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
