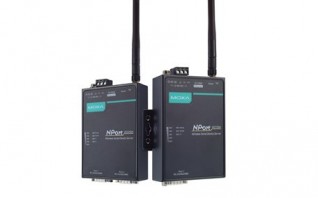

NPORT W2150A/W2250A SERIES

1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN CN band, 12 to 48 VDC, 0 to 55°C operating temperature, with CN plug
nport-w2150aw2250a-series
Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
Web-based configuration using built-in Ethernet or WLAN
Enhanced surge protection for serial, LAN, and power
Remote configuration with HTTPS, SSH
Secure data access with WEP, WPA, WPA2
Fast roaming for quick automatic switching between access points
Offline port buffering and serial data log
Dual power inputs (1 screw-type power jack, 1 terminal block)

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1
  • Magnetic Isolation Protection: 1.5 kV (built-in)
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)

Ethernet Software Features

  • Configuration Options: Web Console (HTTP/HTTPS), Windows Utility
  • Management: DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console
  • Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API: Android 3.1.x and later
  • MIB: Device Settings MIB, RFC1213, RFC1317
  • Security: HTTPS/SSL, User Authentication Management: local database, RADIUS, Secure Protocols: HTTPS (TLSv1.2), SSH, SNMPv3, Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
  • Time Management: NTP Client, SNTP Client

WLAN Interface

  • WLAN Standards: 802.11a/b/g/n
  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -91 @ 6 Mbps Typ. -74 @ 54 Mbps
  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -92 dBm @ 1 Mbps Typ. -84 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -91 dBm @ 6 Mbps Typ. -73 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz)
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz) Typ. -85 dBm @ 13.5 Mbps (40 MHz) Typ. -67 dBm @ 150 Mbps (40 MHz)
  • Modulation Type: DSSS OFDM
  • Transmission Distance: Up to 100 meters (in open areas)
  • Transmission Rate: 802.11a/g: 54 Mbps 802.11b: 11 Mbps 802.11n: 6.5 to 150 Mbps
  • Transmitter Power for 802.11b: 16±1.5 dBm @ 1 Mbps 16±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g: 16±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11a: 15±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz): 16 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (72.2 MHz)
  • Transmitter Power for 802.11n (5 GHz): 15 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (150 MHz)
  • Frequency Band for CN (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
  • Frequency Band for CN (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for CN (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for EU (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for EU (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for JP (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for JP (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for US (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
  • Frequency Band for US (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for US (20 MHz operating channels): 5.500 to 5.700 GHz (11 channels)
  • Frequency Band for US (20 MHz operating channels): DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Frequency Band for US (20 MHz operating channels): 5.745 to 5.825 GHz (5 channels)
  • Wireless Security: WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
  • WLAN Modes: Ad-hoc Mode, Infrastructure mode

Serial Interface

  • Connector: DB9 male
  • No. of Ports: 1
  • Serial Standards: RS-232, RS-422, RS-485
  • Operation Modes: Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Pair Connection mode, Ethernet Modem mode, Disabled
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: None, RTS/CTS, XON/XOFF
  • RS-485 Data Direction Control: ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Surge: 1 kV

Physical Characteristics

  • Housing: Metal
  • Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting
  • Dimensions (with ears, without antenna): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
  • Dimensions (without ears or antenna): 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
  • Weight: 547 g (1.21 lb)
  • Antenna Length: 109.79 mm (4.32 in)

Environmental Limits

  • Operating Temperature: 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Parameters

  • Input Current: 179 mA @ 12 VDC
  • Input Voltage: 12 to 48 VDC

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
  • Radio Frequency: CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301 489-17, ETSI EN 301 489-1), ARIB RCR STD-33, ARIB STD-66

Reliability

  • Alert Tools: RTC (real-time clock)
  • Automatic Reboot Trigger: Built-in WDT

MTBF

  • Time: 383,187 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Antenna Characteristics

  • Connector: RP-SMA (male)
  • Antenna Type: Omni-directional

Security Functions

  • Authentication: Local database RADIUS
  • Encryption: HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384
  • Security Protocols: SNMPv3 SSHv2 HTTPS (TLS 1.2)

Available Models

Model No. Description Quantity
NPort W2250A-JP 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN JP band, 12 to 48 VDC, 0 to 55°C operating temperature, with JP plug
NPort W2150A-JP 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN JP band, 12 to 48 VDC, 0 to 55°C operating temperature, with JP plug
NPort W2250A-EU/KC 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, 0 to 55°C operating temperature, with KC plug
NPort W2150A-T-JP 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN JP band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2250A-US 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN US band, 12 to 48 VDC, 0 to 55°C operating temperature, with US plug
NPort W2250A-T-EU 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2250A-T-US 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN US band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2150A-US 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN US band, 12 to 48 VDC, 0 to 55°C operating temperature, with US plug
NPort W2250A-EU 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, 0 to 55°C operating temperature, with EU plug
NPort W2250A-T-JP 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN JP band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2150A-T-CN 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN CN band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2150A-EU 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, 0 to 55°C operating temperature, with EU plug
NPort W2250A-CN 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN CN band, 12 to 48 VDC, 0 to 55°C operating temperature, with CN plug
NPort W2150A-EU/KC 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, 0 to 55°C operating temperature, with KC plug
NPort W2150A-T-EU 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2150A-T-US 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN US band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2250A-T-CN 2-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN CN band, 12 to 48 VDC, -40 to 75°C operating temperature
NPort W2150A-CN 1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN CN band, 12 to 48 VDC, 0 to 55°C operating temperature, with CN plug
