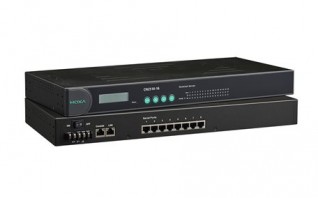

CN2510 SERIES
16-port RS-232 Async Server, 100 to 240 VAC power input
LCD control panel for easy on-site management
Supports up to 16 dial-in users when operating as a standalone remote access server
Supports PPP/SLIP with RADIUS authentication and RIP I/II routing protocols
Real COM and TTY drivers for Windows, Linux, and macOS
48 VDC for telecom applications (for CN2510-8/16-48V)
Supports up to 16 dial-in users when operating as a standalone remote access server
Supports PPP/SLIP with RADIUS authentication and RIP I/II routing protocols
Real COM and TTY drivers for Windows, Linux, and macOS
48 VDC for telecom applications (for CN2510-8/16-48V)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
Ethernet Software Features
- Management: Device Search Utility (DSU), DHCP Client, TCP/IP, UDP
- MIB: MIB-II
- Security: RADIUS
- Unicast Routing: RIPV1/V2, Static Route
- Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
- Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Serial Interface
- Connector: 8-pin RJ45
- No. of Ports: 16
- Serial Standards: RS-232
- Operation Modes: Terminal mode
- Baudrate: 50 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None, RTS/CTS, XON/XOFF
Power Parameters
- Input Current: 125 mA @ 110 VAC
- Input Voltage: 100 to 240 VAC (47 to 63 Hz)
Physical Characteristics
- Housing: Metal
- Installation: 19-inch rack mounting
- Dimensions: 440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in)
- Weight: 2,700 g (5.95 lb)
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -20 to 70°C (-4 to 158°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Safety: EN 60950-1, UL 60950-1
MTBF
- Time: 654,195 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
