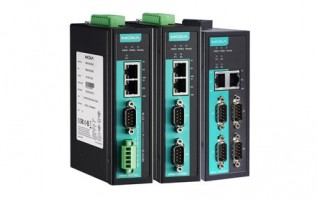

NPORT IA5000A SERIES
1-port RS-232/422/485 industrial automation device server with serial/LAN/power surge protection, 2 10/100BaseT(X) ports with single IP, 0 to 60°C operating temperature
2 Ethernet ports with the same IP or dual IP addresses for network redundancy
C1D2, ATEX, and IECEx certified for harsh industrial environments
Cascading Ethernet ports for easy wiring
Enhanced surge protection for serial, LAN, and power
Screw-type terminal blocks for secure power/serial connections
Redundant DC power inputs
Warnings and alerts by relay output and email
2 kV isolation for serial signals (isolation models)
-40 to 75°C operating temperature range (-T models)
C1D2, ATEX, and IECEx certified for harsh industrial environments
Cascading Ethernet ports for easy wiring
Enhanced surge protection for serial, LAN, and power
Screw-type terminal blocks for secure power/serial connections
Redundant DC power inputs
Warnings and alerts by relay output and email
2 kV isolation for serial signals (isolation models)
-40 to 75°C operating temperature range (-T models)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): Supports 2 IP addressesAuto MDI/MDI-X connection
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP/HTTPS) Windows Utility Device Search Utility (DSU) MCC Tool Serial Console Telnet Console
- Management: ARP BOOTP DHCP Client DNS HTTP HTTPS ICMP IPv4 LLDP Rtelnet SMTP SNMPv1/v2c TCP/IP Telnet UDP
- Filter: IGMP v1/v2
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
- Fixed TTY Drivers: macOS versions: 14, 13, 12, 11 and 10.1x
- Android API: Android 3.1.x and later
- Time Management: SNTP
- Virtual Machine: VMWare ESXi (Windows 11 / 10)VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)
- Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x and 4.xmacOS 14, 13, 12 and 11
Serial Interface
- Connector: DB9 male for RS-232 Terminal block for RS-422/485
- No. of Ports: 1
- Serial Standards: RS-232 RS-422 RS-485
- Operation Modes: Disabled Ethernet Modem Pair Connection Real COM Reverse Telnet RFC2217 TCP Client TCP Server UDP
- Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None RTS/CTS (RS-232 only) DTR/DSR (RS-232 only) XON/XOFF
- RS-485 Data Direction Control: ADDC (automatic data direction control)
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Power Parameters
- Input Current: 220 mA @ 12 VDC
- Input Voltage: 12 to 48 VDC
- No. of Power Inputs: 2
- Power Connector: Terminal block
Physical Characteristics
- Housing: Metal
- Dimensions: 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)
- Weight: 475 g (1.05 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Safety: UL 508
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Hazardous Locations: ATEX Zone 2 UL/cUL Class I Division 2 Groups A/B/C/D
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 262,805 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database
- Encryption: HTTPS AES-128 RSA-1024 SHA-1 SHA-256
