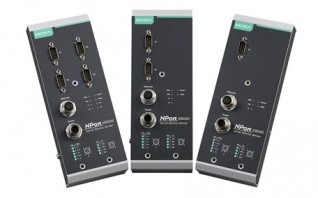

NPORT 5000AI-M12 SERIES

1-port RS-232/422/485 device server with M12 connector, M12 power input, -25 to 55°C operating temperature
nport-5000ai-m12-series
Speedy 3-step web-based configuration
COM port grouping and UDP multicast applications
Real COM and TTY drivers for Windows, Linux, and macOS
Standard TCP/IP interface and versatile TCP and UDP operation modes
Complies with EN 50121-4
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
M12 connector and IP40 metal housing
2 kV isolation for serial signals

Ethernet Interface

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1

Ethernet Software Features

  • Configuration Options: Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Telnet Console
  • Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
  • Filter: IGMP v1/v2
  • Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
  • Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Android API: Android 3.1.x and later

Serial Interface

  • Connector: DB9 male
  • No. of Ports: 1
  • Serial Standards: RS-232, RS-422, RS-485
  • Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • RS-485 Data Direction Control: ADDC (automatic data direction control)
  • Isolation: 2 kV

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Power Parameters

  • Input Current: 310 mA @ 12 VDC
  • Input Voltage: 12 to 48 VDC
  • Note: Compliant with EN 50155 on 24/48 VDC
  • Power Connector: M12 A-coded 5-pin male connector

Reliability

  • Automatic Reboot Trigger: Built-in WDT
  • Alert Tools: Built-in buzzer and RTC (real-time clock)

Physical Characteristics

  • Dimensions: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)
  • Weight: 686 g (1.51 lb)

Environmental Limits

  • Operating Temperature: -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
  • Railway: EN 50121-4
  • Safety: UL 60950-1
  • Vibration: IEC 60068-2-6

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 789,341 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Security Functions

  • Authentication: Local database
  • Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
  • Security Protocols: SNMPv3 HTTPS (TLS 1.2)

Available Models

Model No. Description Quantity
NPort 5150AI-M12-CT-T 1-port RS-232/422/485 device server with M12 connector, M12 power input, -40 to 75°C operating temperature, conformal coating
NPort 5250AI-M12-CT-T 2-port RS-232/422/485 device server with M12 connector, M12 power input, -40 to 75°C operating temperature, conformal coating
NPort 5150AI-M12 1-port RS-232/422/485 device server with M12 connector, M12 power input, -25 to 55°C operating temperature
NPort 5250AI-M12 2-port RS-232/422/485 device server, 1 10/100BaseT(X) port with M12 connector, M12 power input, -25 to 55°C operating temperature
NPort 5150AI-M12-T 1-port RS-232/422/485 device server, 1 10/100BaseT(X) port with M12 connector, M12 power input, -40 to 75°C operating temperature
NPort 5250AI-M12-T 2-port RS-232/422/485 device server, 1 10/100BaseT(X) port with M12 connector, M12 power input, -40 to 75°C operating temperature
NPort 5450AI-M12-CT-T 4-port RS-232/422/485 device server with M12 connector, M12 power input, -40 to 75°C operating temperature, conformal coating
NPort 5450AI-M12 4-port RS-232/422/485 device server, 1 10/100BaseT(X) port with M12 connector, M12 power input, -25 to 55°C operating temperature
NPort 5450AI-M12-T 4-port RS-232/422/485 device server, 1 10/100BaseT(X) port with M12 connector, M12 power input, -40 to 75°C operating temperature
NPort 5150AI-M12-CT 1-port RS-232/422/485 device server with M12 connector, M12 power input, -25 to 55°C operating temperature, conformal coating
NPort 5250AI-M12-CT 2-port RS-232/422/485 device server, 1 10/100BaseT(X) port with M12 connector, M12 power input, -25 to 55°C operating temperature, conformal coating
NPort 5450AI-M12-CT 4-port RS-232/422/485 device server, 1 10/100BaseT(X) port with M12 connector, M12 power input, -25 to 55°C operating temperature, conformal coating
