IEEE 802.3af-compliant PoE power device equipment
Speedy 3-step web-based configuration
Surge protection for serial, Ethernet, and power
COM port grouping and UDP multicast applications
Screw-type power connectors for secure installation
Real COM and TTY drivers for Windows, Linux, and macOS
Standard TCP/IP interface and versatile TCP and UDP operation modes

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 1
• Magnetic Isolation Protection: 1.5 kV (built-in)
• Standards: PoE (IEEE 802.3af)

Ethernet Software Features

• Configuration Options: Web Console (HTTP/HTTPS) Windows Utility Device Search Utility (DSU) Telnet Console Serial Console MCC Tool
• Management: ARP BOOTP DHCP Client DNS HTTP HTTPS ICMP IPv4 LLDP SMTP SNMPv1/v2c TCP/IP Telnet UDP
• Filter: IGMP v1/v2
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
• Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Android API: Android 3.1.x and later
• MIB: RFC1213, RFC1317
• Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
• Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)

Serial Interface

• Connector: DB9 male
• No. of Ports: 1
• Serial Standards: RS-232 RS-422 RS-485
• Operation Modes: Disabled Ethernet Modem Pair Connection Real COM Reverse Telnet RFC2217 TCP Client TCP Server UDP
• Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS DTR/DSR XON/XOFF
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Power Parameters

• Input Current: DC Jack I/P: 125 mA @ 12 VDC PoE I/P: 180 mA @ 48 VDC
• Input Voltage: 12 to 48 VDC (supplied by power adapter) 48 VDC (supplied by PoE)
• No. of Power Inputs: 1
• Source of Input Power: Power input jack PoE

Physical Characteristics

• Housing: Metal
• Dimensions (with ears): 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
• Dimensions (without ears): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
• Weight: 300 g (0.66 lb)

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Safety: EN 62368-1 UL 60950-1

MTBF

• Time: 2,231,530 hrs
• Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Reliability

• Automatic Reboot Trigger: Built-in WDT

Available Models

Model No.	Description	Quantity

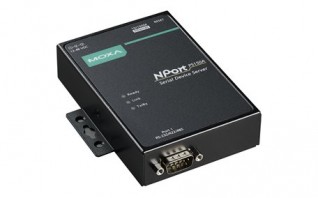

NPort P5150A-T	1-port RS-232/422/485 PoE device server, -40 to 75°C operating temperature
NPort P5150A	1-port RS-232/422/485 PoE device server, 0 to 60°C operating temperature
