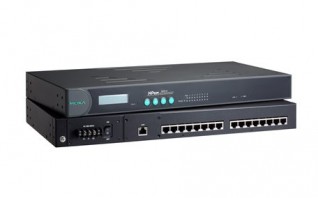

NPORT 5600 SERIES
16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100 to 240 VAC power input
Standard 19-inch rackmount size
Easy IP address configuration with LCD panel (excluding wide-temperature models)
Configure by Telnet, web browser, or Windows utility
Socket modes: TCP server, TCP client, UDP
SNMP MIB-II for network management
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Easy IP address configuration with LCD panel (excluding wide-temperature models)
Configure by Telnet, web browser, or Windows utility
Socket modes: TCP server, TCP client, UDP
SNMP MIB-II for network management
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Optical Fiber: 1
- Optical Fiber: 100BaseFX
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Fiber Cable Type
- Optical Fiber: OM1
- Optical Fiber: 50/125 µm
- Optical Fiber: G.652
- Optical Fiber: 800 MHz x km
- Optical Fiber: Typical Distance
- Optical Fiber: 4 km
- Optical Fiber: 5 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 1300
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 1260 to 1360
- Optical Fiber: 1280 to 1340
- Optical Fiber: RX Range (nm)
- Optical Fiber: 1100 to 1600
- Optical Fiber: 1100 to 1600
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: -10 to -20
- Optical Fiber: 0 to -5
- Optical Fiber: RX Range (dBm)
- Optical Fiber: -3 to -32
- Optical Fiber: -3 to -34
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 12
- Optical Fiber: 29
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 3
- Optical Fiber: 1
- Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features
- Configuration Options: Telnet Console Web Console (HTTP/HTTPS) Windows Utility
- Management: ARP BOOTP DHCP Client DNS HTTP HTTPS ICMP IPv4 LLDP RFC2217 Rtelnet PPP SLIP SMTP SNMPv1/v2c TCP/IP Telnet UDP
- Windows Real COM Drivers: Windows 11/10/8.1/8/7/Vista/XP/ME/98/95 Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003 Windows Embedded CE 6.0/5.0, Windows XP Embedded
- Fixed TTY Drivers: macOS Versions: 11.x, 10.12 to 10.15
- Linux Real TTY Drivers: Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
- Android API: Android 3.1.x and later
- Time Management: SNTP
- Filter: IGMP v1/v2c
- Arm®-based Platform Support: Linux Kernel 5.x/4.x
- Virtual Machine: VMWare ESXi (Windows 11/10) VMware Fusion (Windows on macOS 10.12 to 11.x)Parallels Desktop (Windows on macOS 10.12 to 11.x)
Serial Interface
- Connector: 8-pin RJ45
- No. of Ports: 16
- Serial Standards: RS-232 RS-422 RS-485
- Operation Modes: Disabled Ethernet Modem Pair Connection Real COM Reverse Telnet RFC2217 TCP Client TCP Server UDP
- Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None RTS/CTS (RS-232 only) DTR/DSR (RS-232 only) XON/XOFF
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Power Parameters
- Input Current: 158 mA @ 100 VAC
- Input Voltage: 100 to 240 VAC, 47 to 63 Hz
Reliability
- Automatic Reboot Trigger: Built-in WDT
Physical Characteristics
- Housing: Metal
- Installation: 19-inch rack mounting
- Dimensions (with ears): 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
- Dimensions (without ears): 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
- Weight: 2,510 g (5.53 lb)
- Interactive Interface: LCD panel display Push buttons for configuration
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -20 to 70°C (-4 to 158°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMC: EN 55032/35
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Medical: EN 55011: 2007+A2: 2007 Class A (Group 1) compliant EN 60601-1-2: 2007 compliant
- Safety: UL 62368-1
MTBF
- Time: 525,107 hrs
- Standards: MIL-HDBK-217F
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database
- Encryption: HTTPS AES-128 RSA-1024 SHA-1 SHA-256
- Security Protocols: HTTPS (TLS 1.2) SNMPv3
