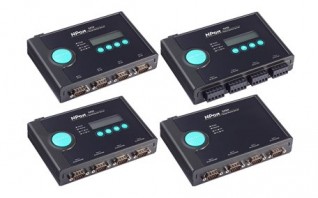

NPORT 5400 SERIES
4-port RS-232 serial device server
User-friendly LCD panel for easy installation
Adjustable termination and pull high/low resistors
Socket modes: TCP server, TCP client, UDP
Configure by Telnet, web browser, or Windows utility
SNMP MIB-II for network management
2 kV isolation protection for NPort 5430I/5450I/5450I-T
-40 to 75°C operating temperature range (-T model)
Adjustable termination and pull high/low resistors
Socket modes: TCP server, TCP client, UDP
Configure by Telnet, web browser, or Windows utility
SNMP MIB-II for network management
2 kV isolation protection for NPort 5430I/5450I/5450I-T
-40 to 75°C operating temperature range (-T model)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Telnet Console Windows Utility Web Console (HTTP/HTTPS)
- Management: ARP BOOTP DHCP Client DNS HTTP HTTPS ICMP IPv4 LLDP Rtelnet SMTP SNMPv1/v2c TCP/IP Telnet UDP
- Windows Real COM Drivers: Windows 11/10/8.1/8/7/Vista/XP/ME/98/95Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NTWindows Embedded CE 5.0/6.0, Windows XP Embedded
- Fixed TTY Drivers: macOS Versions: 10.12 to 10.15, 11.x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Linux Real TTY Drivers: Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
- Android API: Android 3.1.x and later
- Time Management: SNTP
- Filter: IGMP v1/v2
- Arm®-based Platform Support: Linux Kernel 5.x/4.x
- Virtual Machine: VMWare ESXi (Windows 11 / 10) VMware Fusion (Windows on macOS 10.12 to 11.x)Parallels Desktop (Windows on macOS 10.12 to 11.x)
Serial Interface
- Connector: DB9 male
- No. of Ports: 4
- Serial Standards: RS-232
- Operation Modes: Real COM TCP Server TCP Client UDP Ethernet Modem Pair Connection Reverse Telnet Disabled
- Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS (RS-232 only) DTR/DSR (RS-232 only)
- Terminator for RS-485: 120 ohms
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
- Input Current: 365 mA @ 12 VDC
- Input Voltage: 12 to 48 VDC, 24 VDC for DNV
- No. of Power Inputs: 2
- Power Connector: 1 removable 3-contact terminal block(s) Power input jack
Reliability
- Automatic Reboot Trigger: Built-in WDT
- Alert Tools: Built-in buzzer and RTC (real-time clock)
Physical Characteristics
- Housing: Metal
- Dimensions (with ears): 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)
- Dimensions (without ears): 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)
- Weight: 740 g (1.63 lb)
- Interactive Interface: LCD panel display Push buttons for configuration
- Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Maritime: DNV
- Medical: EN 60601-1-2 Class B, EN 55011
- Safety: UL 62368-1
MTBF
- Time: 880,274 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database
- Encryption: HTTPS AES-128 RSA-1024 SHA-1 SHA-256
- Security Protocols: HTTPS (TLS 1.2) SNMPv3
