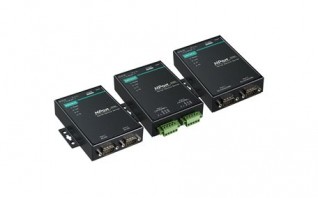

NPORT 5200A SERIES
2-port RS-232 device server, 0 to 60°C operating temperature
Fast 3-step web-based configuration
Surge protection for serial, Ethernet, and power
COM port grouping and UDP multicast applications
Screw-type power connectors for secure installation
Dual DC power inputs with power jack and terminal block
Versatile TCP and UDP operation modes
Surge protection for serial, Ethernet, and power
COM port grouping and UDP multicast applications
Screw-type power connectors for secure installation
Dual DC power inputs with power jack and terminal block
Versatile TCP and UDP operation modes
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Serial Console
- Management: ARP BOOTP DHCP Client DNS HTTP HTTPS ICMP IPv4 LLDP SMTP SNMPv1/v2c Telnet TCP/IP UDP
- Filter: IGMP v1/v2
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTWindows Embedded CE 6.0 and 5.0, Windows XP Embedded
- Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
- Android API: Android 3.1.x and later
- MIB: RFC1213, RFC1317
- Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
- Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
Serial Interface
- Connector: DB9 male
- No. of Ports: 2
- Serial Standards: RS-232
- Operation Modes: Disabled Ethernet Modem Pair Connection Real COM Reverse Telnet RFC2217 TCP Client TCP Server UDP
- Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS (RS-232 only) DTR/DSR (RS-232 only)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
- Input Current: 119 mA @ 12 VDC
- Input Voltage: 12 to 48 VDC
- No. of Power Inputs: 2
- Power Connector: 1 removable 3-contact terminal block(s) Power input jack
Reliability
- Automatic Reboot Trigger: Built-in WDT
Physical Characteristics
- Housing: Metal
- Dimensions (with ears): 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
- Dimensions (without ears): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
- Weight: 340 g (0.75 lb)
- Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- EMI: CISPR 32, FCC Part 15B Class A
- Safety: EN 62368-1 IEC 62368-1 UL 60950-1
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 847,750 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database
- Encryption: AES-128 RSA-1024 SHA-256 HTTPS SHA-1
- Security Protocols: HTTPS (TLS 1.2)
