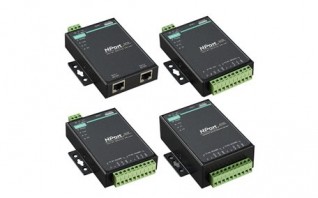

NPORT 5200 SERIES
2-port RS-232 device server, 0 to 55°C operating temperature
Compact design for easy installation
Socket modes: TCP server, TCP client, UDP
Easy-to-use Windows utility for configuring multiple device servers
ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
SNMP MIB-II for network management
Socket modes: TCP server, TCP client, UDP
Easy-to-use Windows utility for configuring multiple device servers
ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
SNMP MIB-II for network management
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Windows Utility Serial Console Telnet Console Web Console (HTTP)
- Management: DHCP Client IPv4 SNTP SMTP SNMPv1 DNS HTTP ARP BOOTP UDP TCP/IP Telnet ICMP
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTWindows Embedded CE 6.0 and 5.0, Windows XP Embedded
- Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
- Android API: Android 3.1.x and later
- MIB: RFC1213, RFC1317
- Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x, and 4.xmacOS 14, 13, 12, and 11
- Virtual Machine: VMWare ESXi (Windows 11/10)VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
Serial Interface
- Connector: 8-pin RJ45
- No. of Ports: 2
- Serial Standards: RS-232
- Operation Modes: Disabled Ethernet Modem Pair Connection Real COM Reverse Telnet TCP Client TCP Server UDP
- Baudrate: Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS (RS-232 only) DTR/DSR (RS-232 only) XON/XOFF
- Pull High/Low Resistor for RS-485: None
- RS-485 Data Direction Control: ADDC (automatic data direction control)
- Terminator for RS-485: 120 ohms
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Power Parameters
- Input Current: 325 mA @ 12 VDC
- Input Voltage: 12 to 48 VDC
- No. of Power Inputs: 1
- Power Connector: 1 removable 3-contact terminal block(s)
Reliability
- Automatic Reboot Trigger: Built-in WDT
- Alert Tools: Built-in buzzer and RTC (real-time clock)
Physical Characteristics
- Housing: Metal
- Dimensions (with ears): 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
- Dimensions (without ears): 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
- Weight: 340 g (0.75 lb)
- Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Safety: UL 60950-1
- Medical: EN 60601-1-2: 2007 compliant EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 381,342 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database (password only)
