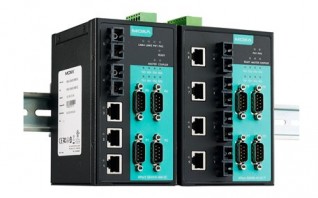

NPORT S8000 SERIES

4 RS-232/422/485 ports, 5 10/100BaseT(X) ports, 12 to 48 VDC, 2 kV isolation protection, 0 to 60°C operating temperature
nport-s8000-series
4-port RS-232/422/485 serial device server
Serial QoS for configuring serial data transmission priority
Built-in managed Ethernet switch
S8455I fiber models: 2 fiber Ethernet ports and 3 Ethernet ports
S8455I all-copper models: 5 Ethernet ports
Ethernet redundancy with Turbo Ring and Turbo Chain (recovery time
QoS, IGMP-snooping/GMRP, VLAN, LACP, SNMPv1/v2c/v3, RMON supported
2 kV isolation for serial signals (isolation models)
Adjustable pull high/low resistor for RS-485 ports
Surge protection for serial, Ethernet, and power

Input/Output Interface

  • Alarm Contact Channels: 2, Resistive load: 1 A @ 24 VDC
  • Digital Input Channels: 2
  • Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 5
  • Optical Fiber: 1
  • Optical Fiber: 100BaseFX
  • Optical Fiber: Multi-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Fiber Cable Type
  • Optical Fiber: OM1
  • Optical Fiber: 50/125 µm
  • Optical Fiber: G.652
  • Optical Fiber: 800 MHz x km
  • Optical Fiber: Typical Distance
  • Optical Fiber: 4 km
  • Optical Fiber: 5 km
  • Optical Fiber: 40 km
  • Optical Fiber: Wavelength
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 1300
  • Optical Fiber: 1310
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1280 to 1340
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: -10 to -20
  • Optical Fiber: 0 to -5
  • Optical Fiber: RX Range (dBm)
  • Optical Fiber: -3 to -32
  • Optical Fiber: -3 to -34
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 12
  • Optical Fiber: 29
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 3
  • Optical Fiber: 1
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
  • Magnetic Isolation Protection: 1.5 kV (built-in)
  • Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control

Switch Properties

  • IGMP Groups: 256
  • Max. No. of VLANs: 64
  • Priority Queues: 4
  • VLAN ID Range: VID 1 to 4094

Ethernet Software Features

  • Configuration Options: Web Console (HTTP/HTTPS), Windows Utility, Serial Console, Telnet Console
  • Management: BOOTP, Device Search Utility (DSU), DHCP Client, DHCP Option 82, HTTP, IPv4, LLDP, Port Mirror, RMON, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, Web Console
  • Filter: 802.1Q, GVRP, IGMP v1/v2
  • Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
  • Android API: Android 3.1.x and later
  • Time Management: SNTP
  • MIB: Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols: RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2
  • Security: HTTPS, SSL, SSH
  • Authentication: Local Account Accessibility, RADIUS

Serial Interface

  • Connector: DB9 male
  • No. of Ports: 4
  • Serial Standards: RS-232/422/485
  • Operation Modes: Disabled, Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: None, RTS/CTS, XON/XOFF
  • Isolation: 2 kV
  • RS-485 Data Direction Control: ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

DIP Switch Configuration

  • Ethernet Interface: Coupler, Master, Reserved, Turbo Ring

Power Parameters

  • No. of Power Inputs: 2
  • Power Connector: 2 removable 6-contact terminal block(s)
  • Input Current: 935 mA @ 12 VDC
  • Input Voltage: 12 to 48 VDC

Physical Characteristics

  • Housing: Metal
  • Dimensions: 73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in)
  • Weight: 578 g (1.27 lb)
  • Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Storage Temperature: -40 to 75°C (-40 to 167°F)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.25 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
  • Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
  • Hazardous Locations: Class I Division 2
  • Safety: EN 60950-1, IEC 60950-1, UL 508, UL 60950-1
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 287,354 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
NPort S8455I-T 4 RS-232/422/485 ports, 5 10/100BaseT(X) ports, 12 to 48 VDC, 2 kV isolation protection, -40 to 75°C operating temperature
NPort S8455I-SS-SC-T 4 RS-232/422/485 ports, 3 10/100BaseT(X) ports, 2 100M single-mode fiber ports with SC connector, 15 KV ESD, 12 to 48 VDC, -40 to 75°C operating temperature
NPort S8455I 4 RS-232/422/485 ports, 5 10/100BaseT(X) ports, 12 to 48 VDC, 2 kV isolation protection, 0 to 60°C operating temperature
NPort S8455I-MM-SC-T 4 RS-232/422/485 ports, 3 10/100BaseT(X) ports, 2 100M multi-mode fiber ports with SC connector, 15 KV ESD, 12 to 48 VDC, -40 to 75°C operating temperature
NPort S8455I-MM-SC 4 RS-232/422/485 ports, 3 10/100BaseT(X) ports, 2 100M multi-mode fiber ports with SC connector, 15 KV ESD, 12 to 48 VDC, 0 to 60°C operating temperature
NPort S8455I-SS-SC 4 RS-232/422/485 ports, 3 10/100BaseT(X) ports, 2 100M single-mode fiber ports with SC connector, 15 KV ESD, 12 to 48 VDC, 0 to 60°C operating temperature
