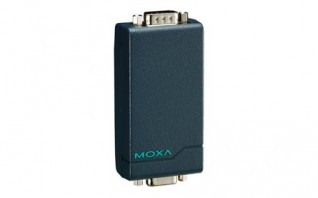

TCC-82

Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection
tcc-82
Four channels of 4 kV RMS isolation for 1 minute
External power source supported but not required
Automatic baudrate detection
Compact size

Serial Interface

  • Connector: DB9 male
  • No. of Ports: 2
  • Serial Standards: RS-232
  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, GND

Power Parameters

  • Input Current: 5 to 12 VDC, 20 mA (max.)
  • Input Voltage: 5 to 12 VDC
  • No. of Power Inputs: 1
  • Overload Current Protection: Supported
  • Power Consumption: 20 mA @ 5 to 12 VDC
  • Source of Input Power: Power input jack

Physical Characteristics

  • Housing: Plastic
  • IP Rating: IP30
  • Dimensions: 42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)
  • Weight: 60 g (0.13 lb)
  • Installation: Desktop

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class B
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
  • Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
  • Safety: UL 60950-1
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 959,780 hrs
  • Standards: MIL-HDBK-217F

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
TCC-82 Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection
