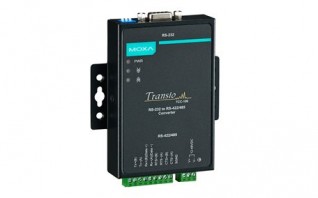

TCC-100/100I SERIES
RS-232 to RS-422/485 converter
RS-232 to RS-422 conversion with RTS/CTS support
RS-232 to 2-wire or 4-wire RS-485 conversion
2 kV isolation protection (TCC-100I)
Wall mounting and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
Wide-temperature model available for -40 to 85°C environments
RS-232 to 2-wire or 4-wire RS-485 conversion
2 kV isolation protection (TCC-100I)
Wall mounting and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
Wide-temperature model available for -40 to 85°C environments
Serial Interface
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Connector: Terminal block
- No. of Ports: 2
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- RS-485 Data Direction Control: ADDC (automatic data direction control)
- Serial Standards: RS-232 RS-422 RS-485
- Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, RTS (optional), CTS (optional), GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Power Parameters
- Input Current: 50 to 85 mA @ 12 to 48 VDC
- Input Voltage: 12 to 48 VDC
- No. of Power Inputs: 1
- Overload Current Protection: Supported
- Power Connector: Terminal block (for DC models)
- Power Consumption: 50 to 85 mA @ 12 to 48 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
- IP Rating: IP30
- Weight: 148 g (0.33 lb)
- Installation: DIN-rail mounting (with optional kit) Wall mounting
Environmental Limits
- Operating Temperature: -20 to 60°C (-4 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
- Safety: UL 60950-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 3,017,857 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
