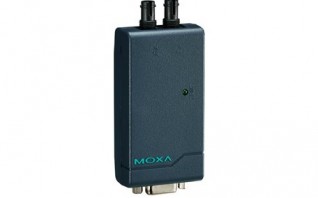

TCF-90 SERIES

RS-232 to multi-mode ST fiber optic converter, port powered
tcf-90-series
Uses either external power or power over serial
Extends RS-232 transmission up to 40 km with single-mode (TCF-90-S) or 5 km with multi-mode (TCF-90-M)
Reduces signal interference
Protects against electrical interference and chemical corrosion
Compact size

Serial Interface

  • No. of Ports: 2
  • Serial Standards: RS-232
  • Baudrate: 300 bps to 115.2 kbps
  • Flow Control: ADDC (automatic data direction control) for RS-485
  • Optical Fiber: 1
  • Optical Fiber: Read more
  • Optical Fiber: Low-Speed Fiber Module
  • Optical Fiber: Multi-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Fiber Cable Requirements
  • Optical Fiber: 50/125 µm, 800 MHz
  • Optical Fiber: G.652
  • Optical Fiber: 62.5/125 µm, 500 MHz
  • Optical Fiber: Typical Distance
  • Optical Fiber: 5 km
  • Optical Fiber: 40 km
  • Optical Fiber: Wavelength
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 850
  • Optical Fiber: 1310
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 840 to 860
  • Optical Fiber: 1290 to 1330
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 800 to 900
  • Optical Fiber: 1100 to 1650
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: 0 to -5
  • Optical Fiber: 0 to -5
  • Optical Fiber: RX Range (dBm)
  • Optical Fiber: 0 to -20
  • Optical Fiber: 0 to -25
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 15
  • Optical Fiber: 20
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 1
  • Optical Fiber: 1
  • Optical Fiber: Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.
  • Connector: Multi-mode ST connector

Serial Signals

  • RS-232: The DTR, DSR, DCD, CTS, and RTS pins are internally shorted.

Power Parameters

  • Input Current: 5 to 12 VDC, 20 mA (max.)
  • Input Voltage: 5 to 12 VDC
  • No. of Power Inputs: 1
  • Overload Current Protection: Supported
  • Power Consumption: 20 mA @ 12 VDC
  • Source of Input Power: Power input jack

Physical Characteristics

  • Housing: Plastic
  • IP Rating: IP30
  • Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
  • Weight: 150 g (0.33 lb)
  • Installation: Desktop

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
  • Environmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
  • Safety: UL 60950-1
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 2,272,562 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
TCF-90-M-ST RS-232 to multi-mode ST fiber optic converter, port powered
TCF-90-S-ST RS-232 to single-mode ST fiber optic converter, port powered
