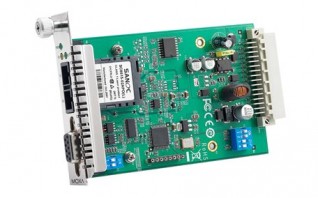

TCF-142-RM SERIES
RS-232/422/485 to multi-mode fiber slide-in module converter, SC connector
Extends RS-232/422/485 transmission up to 40 km with single-mode or 5 km with multi-mode
1 or 150 kilo-ohm adjustable pull high/low resistor
Supports ring and point-to-point transmission
1 or 150 kilo-ohm adjustable pull high/low resistor
Supports ring and point-to-point transmission
Serial Interface
- No. of Ports: 2
- Serial Standards: RS-232, RS-422, RS-485
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Flow Control: ADDC® (automatic data direction control) for RS-485
- Optical Fiber: 1
- Optical Fiber: Read more
- Optical Fiber: Low-Speed Fiber Module
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Fiber Cable Requirements
- Optical Fiber: 50/125 µm, 800 MHz
- Optical Fiber: G.652
- Optical Fiber: 62.5/125 µm, 500 MHz
- Optical Fiber: Typical Distance
- Optical Fiber: 5 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 850
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 840 to 860
- Optical Fiber: 1290 to 1330
- Optical Fiber: RX Range (nm)
- Optical Fiber: 800 to 900
- Optical Fiber: 1100 to 1650
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: 0 to -5
- Optical Fiber: 0 to -5
- Optical Fiber: RX Range (dBm)
- Optical Fiber: 0 to -20
- Optical Fiber: 0 to -25
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 15
- Optical Fiber: 20
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 1
- Optical Fiber: 1
- Optical Fiber: Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- RS-485 Data Direction Control: ADDC® (automatic data direction control)
- Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
- Connector: Multi-mode SC connector
Serial Signals
- RS-232: TxD, RxD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Power Parameters
- Input Current: 150 mA @ 12 VDC
- Overload Current Protection: Supported
- Power Consumption: 150 mA @ 12 VDC
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in)
- Weight: 105 g (0.23 lb)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC) IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
- Safety: EN 60950-1, IEC 60950-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 514,926 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
