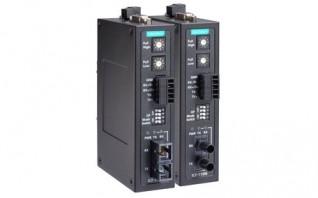

ICF-1150 SERIES
Industrial RS-232/422/485 to multi-mode fiber converter, SC connector, 2 kV isolation, 0 to 60°C operating temperature
3-way communication: RS-232, RS-422/485, and fiber
Rotary switch to change the pull high/low resistor value
Extends RS-232/422/485 transmission up to 40 km with single-mode or 5 km with multi-mode
-40 to 85°C wide-temperature range models available
C1D2, ATEX, and IECEx certified for harsh industrial environments
Rotary switch to change the pull high/low resistor value
Extends RS-232/422/485 transmission up to 40 km with single-mode or 5 km with multi-mode
-40 to 85°C wide-temperature range models available
C1D2, ATEX, and IECEx certified for harsh industrial environments
Serial Interface
- No. of Ports: 2
- Serial Standards: RS-232 RS-422 RS-485
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Flow Control: ADDC (automatic data direction control) for RS-485
- Isolation: 2 kV (I models)
- Optical Fiber: 1
- Optical Fiber: Read more
- Optical Fiber: Low-Speed Fiber Module
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Fiber Cable Requirements
- Optical Fiber: 50/125 µm, 800 MHz
- Optical Fiber: G.652
- Optical Fiber: 62.5/125 µm, 500 MHz
- Optical Fiber: Typical Distance
- Optical Fiber: 5 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 850
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 840 to 860
- Optical Fiber: 1290 to 1330
- Optical Fiber: RX Range (nm)
- Optical Fiber: 800 to 900
- Optical Fiber: 1100 to 1650
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: 0 to -8
- Optical Fiber: 0 to -8
- Optical Fiber: RX Range (dBm)
- Optical Fiber: 0 to -25
- Optical Fiber: 0 to -25
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 15
- Optical Fiber: 20
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 1
- Optical Fiber: 1
- Optical Fiber: Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.
- Pull High/Low Resistor for RS-485: 150 kilo-ohm, 10 kilo-ohm, 4.7 kilo-ohm, 3.3 kilo-ohm, 1 kilo-ohm, 909 ohm, 822 ohm, 770 ohm, 500 ohm, 485 ohm
- RS-485 Data Direction Control: ADDC (automatic data direction control)
- Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
- Connector: 5-pin terminal block Multi-mode SC connector
Serial Signals
- RS-232: TxD, RxD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Power Parameters
- Input Current: 300 mA (max)
- Input Voltage: 12 to 48 VDC
- No. of Power Inputs: 1
- Overload Current Protection: Supported
- Power Connector: Terminal block
- Power Consumption: 300 mA @ 12 to 48 VDC
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
- Weight: 330 g (0.73 lb)
- Installation: DIN-rail mounting
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
- Safety: UL 61010-2-201
- Vibration: IEC 60068-2-6
- Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D ATEX Zone 2
MTBF
- Time: 792,085 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
