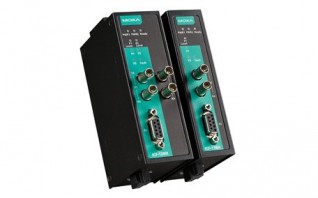

ICF-1180I SERIES

PROFIBUS to fiber converter, multi-mode, ST connector, 0 to 60°C operating temperature
icf-1180i-series
Fiber-cable test function validates fiber communication
Auto baudrate detection and data speed of up to 12 Mbps
PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
Fiber inverse feature
Warnings and alerts by relay output
2 kV galvanic isolation protection
Dual power inputs for redundancy (Reverse power protection)
Extends PROFIBUS transmission distance up to 45 km
Wide-temperature model available for -40 to 75°C environments
Supports Fiber Signal Intensity Diagnosis

Serial Interface

  • Connector: Multi-mode ST connector
  • Optical Fiber: 45 km
  • Optical Fiber: Multi-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Wavelength
  • Optical Fiber: 820 nm
  • Optical Fiber: 1310 nm
  • Optical Fiber: Tx Output
  • Optical Fiber: -14 dBm
  • Optical Fiber: -7 dBm
  • Optical Fiber: Rx Sensitivity
  • Optical Fiber: -28 dBm
  • Optical Fiber: -29 dBm
  • Optical Fiber: Link Budget
  • Optical Fiber: 14 dBm
  • Optical Fiber: 21 dBm
  • Optical Fiber: Typical Distance
  • Optical Fiber: 4 km
  • Optical Fiber: 45 km

PROFIBUS Interface

  • Industrial Protocols: PROFIBUS DP
  • No. of Ports: 1
  • Connector: DB9 female
  • Baudrate: 9600 bps to 12 Mbps
  • Isolation: 2 kV (built-in)
  • Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

Power Parameters

  • Input Current: 269 mA @ 12 to 48 VDC
  • Input Voltage: 12 to 48 VDC
  • No. of Power Inputs: 2
  • Overload Current Protection: Supported
  • Power Connector: Terminal block (for DC models)
  • Power Consumption: 269 mA @ 12 to 48 VDC

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 30.3 x 115 x 70 mm (1.19 x 4.53 x 2.76 in)
  • Weight: 180 g (0.39 lb)
  • Installation: DIN-rail mounting (with optional kit) Wall mounting

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
  • Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
  • Hazardous Locations: ATEX Class I Division 2 IECEx
  • Safety: IEC 60950-1 UL 508
  • Vibration: IEC 60068-2-6
  • Maritime: DNV

MTBF

  • Time: 1,722,769 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
ICF-1180I-M-ST-T PROFIBUS to fiber converter, multi-mode, ST connector, -40 to 75°C operating temperature
ICF-1180I-S-ST PROFIBUS to fiber converter, single-mode, ST connector, 0 to 60°C operating temperature
ICF-1180I-S-ST-T PROFIBUS to fiber converter, single-mode, ST connector, -40 to 75°C operating temperature
ICF-1180I-M-ST PROFIBUS to fiber converter, multi-mode, ST connector, 0 to 60°C operating temperature
